Replacing Steps: Step1: Flip to rear side of the monitor , loosen M3 screws*6 and keep it. Step2: Put rear housing aside and disconnect LED Cable & Backlight Cable Step3: Loosen the screw of LED Driving Board and keep it (Orange area) Step4: Put the ...

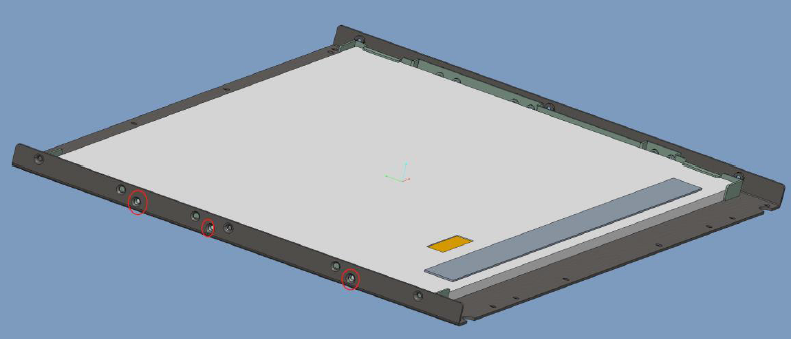

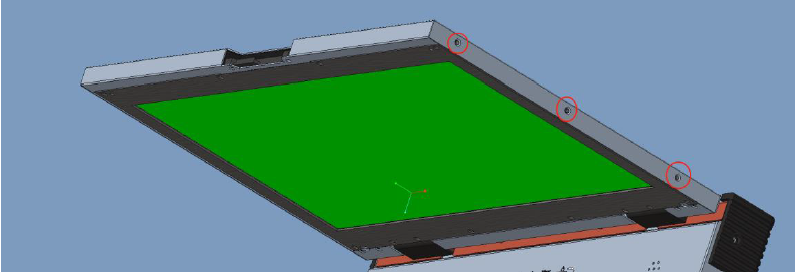

(1) Before your work, please make sure that the power is disconnected. Step 1: Remove all the LCD panel screws. (11 screws) Step 2: Remove the LCD mounting screw carefully in case of damage LCD panel. (8 screws) Step 3: Unplug the cable connected to ...
Step 1 Loosed the maintenance cover screws and removed it. ( blue marked ). Step 2 Removed Input power cable ( yellow marked ). Removed Power Switch cable ( blue marked ). Removed cooling Fan power cable ( red marked ). Removed PC OSD cable ( orange ...
Step 1: Loosed the screws ( blue marked ) Step 2: a. Removed speaker cable ( green marked ) b. Removed Touch USB cable ( red marked ) c. Removed power cable ( blue marked ) d. Removed back cover carefully. Step 3: a. Removed Touch control flat cables ...
