Part No.: AVPW1560Ce - Case 6-OW-110901-78507 - Question: How to Replace AD Board and IO Board?

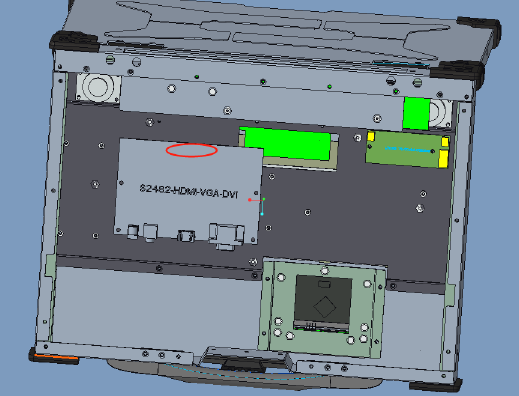

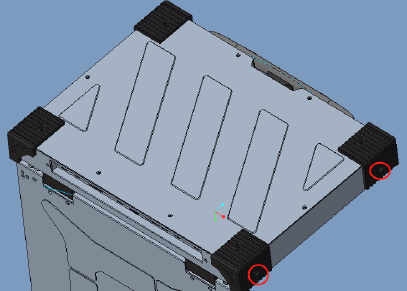

Step 1. Remove screw x 14 to remove rear cover

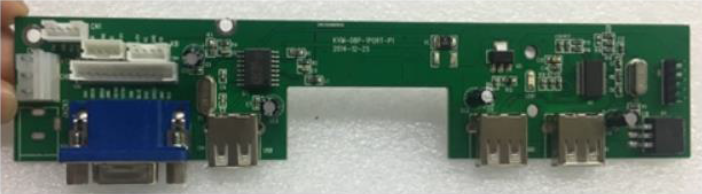

Step 2. Re-plug LCD cable on the AD board to check if the issue can be eliminated. If not, please replace the AD board and make sure the wiring is exactly the same as the original.
Step 3. If the new AD board still cannot fix the issue, please replace the IO board.

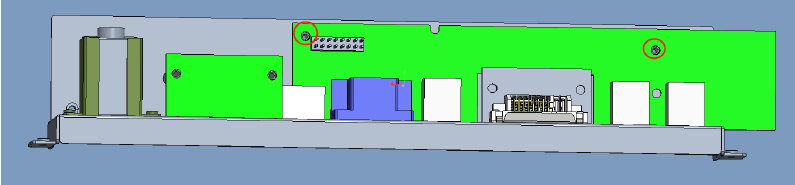

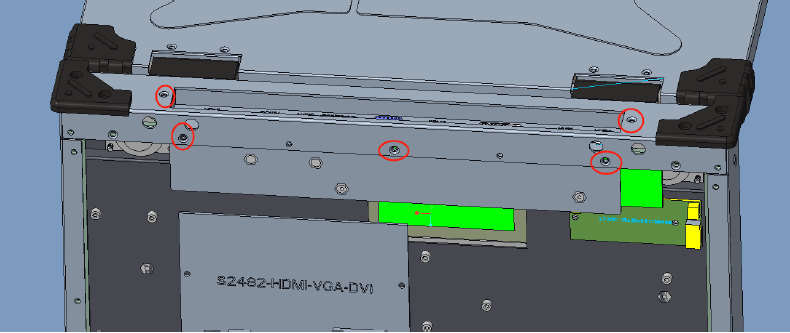

Remove screw x 5 and remove IO bracket
Related Articles
Part No. CCHW4600HBP-SIP-U1 - Case 6-120505-78047 - Question: How to replace AD Board?
Tools: Screw Driver, Knife, Wrench and Silicon Step 1. Loosed the stainless screws and removed Top cover ( blue marked ) Step 2: Loosed the stainless screws, disconnected cooling fan power ( red marked ) and removed the cover ( yellow marked ). Step ...Part No. YCHW1210HB2-TR-SK01 - Case-6-OW-111079-78732 - Question: How to replace Power Board?
How to replace Power Board Step 1. There are eight locking screws on the back cover of the screen, which can be removed directly with a cross screwdriver. Step 2. When opening the back cover, please note that there are three cables connected with it. ...Part No. CCHW6500-SIP-H - Case 6-120194-77571 - Question: How to replace AD Board?
Step 1. Loosed the screws and removed the maintenance cover. (blue marked) Step 2. Removed some cables and loosed AD board screws. Red marked : LVDS cable Yellow marked : Backlight cable Green marked : 12VDC power input cable White marked : HDMI ...Part No. NPW617HD-24 - Case 6-120365-79257 - How to replace AD Board Inverter?
Before your work, please make sure that the power is disconnected. Step 1: Remove all the LCD panel screws. (12 screws, 3 on each sides). Step 2: Remove the LCD panel frame. Step 3: Remove the LCD mounting screws on the back of the unit. (4 for each ...Part No.: EPM2010B TR_HDMI+DP - Case: 6-110117-a - How to replace AD Board on EPM2010B TR_HDMI+DP?
Remove mounting brackets to separate front bezel. Remove screws of touch panel on both sides of back housing, and then lift touch panel for Ad board replacement. Made mark or take photo before replacement for further recovery. Replace Ad board, the ...
