Part No. BHK119-8Ue - Case 6-OW-102516-77576 - Question: How to remove the LCD

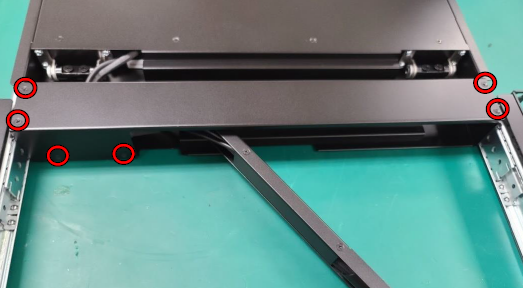

1. Remove the 6x Screws holding the Power/VGA/KB&M connectors cover

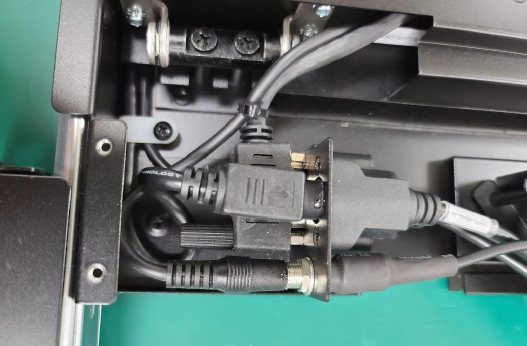

2. Remove all 3x Connectors and reconnect to make sure they are secured properly.

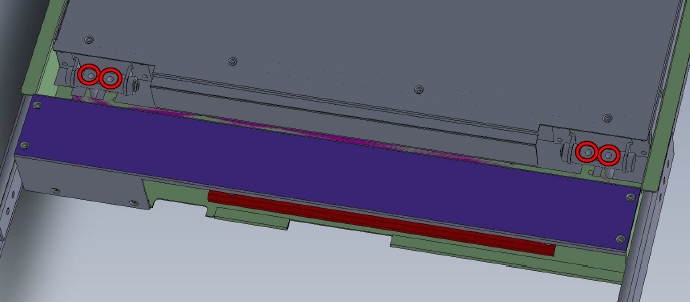

3. Remove the 4x Screws holding the module.
