Part No. CCPCW4300HDi5-PCAP - Case 6-120826-79379 - How to check inside cables.
Cables Check Procedure
Step 1:

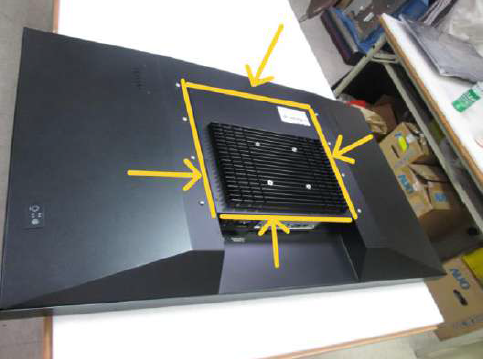

- Loosed heat sink’s VESA mount screws ( 4EA )---blue marked.
- Loosed heater sink screws----red marked.

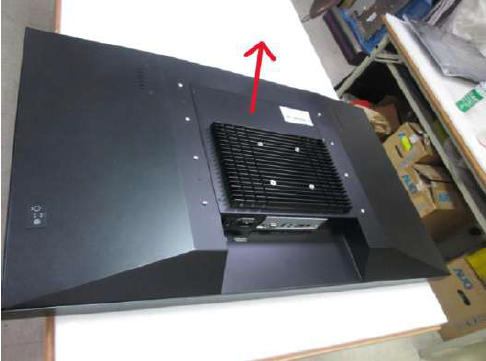

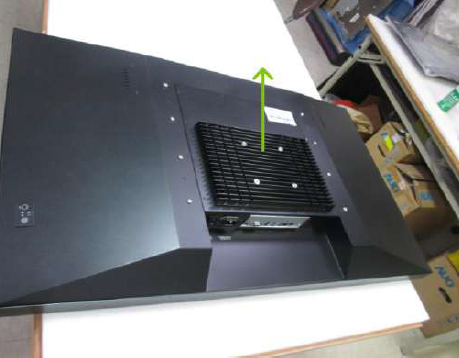

- Removed heater sink---green marked.
Step 2:
- Loosed maintenance cover screws---yellow marked
- Removed maintenance cover---red marked
Step 3:

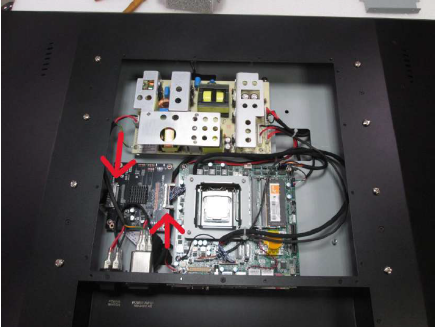

Checked two cables connection status---red marked
NOTE:

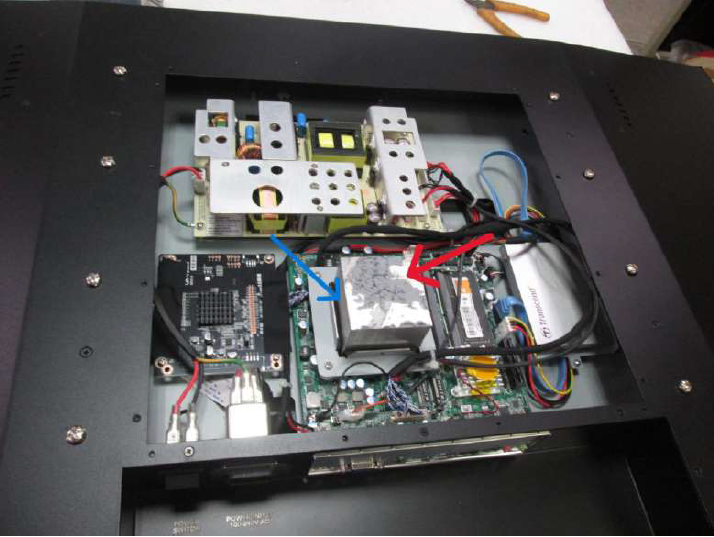

When you want to re-install maintenance cover after cables checking, Please pay more attention CPU Aluminum block ( blue marked ) and the thin gray heat sink ( red marked ) position. They are CPU cooling use.
