Part No. ECHW2700B-SIP-P-K - Case 6-120767-78541 - Question: How to remove Back Panel?

Step 1: Tool : hard plastic sheet, knife, screw driver.

Step 2: Loosed the stainless screws ( red marked ) and removed the rearing enclosure carefully.

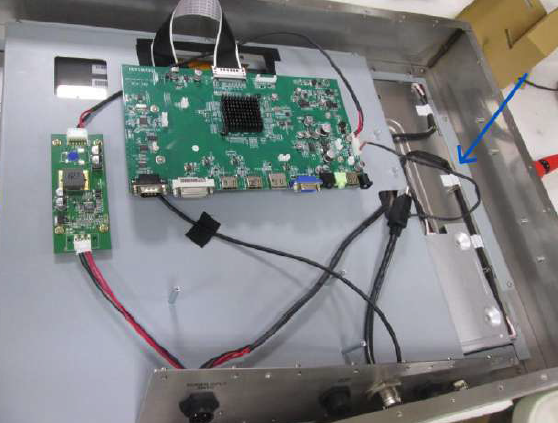

Step 3: We want to check panel’s left / right side fixtures ( blue marked ). Need your help to take some pictures and send them to us.

• Related Articles

• Part No.: SPCW1850i7-FW2-PCAP - Case 6-109625 - Question: How to replace Panel?

  NOTE: When disassembling, please note and mark the original wires and screw positions. STEPS: Step 1: Remove the back cover screws, remove the back cover. Step 2: Remove/Unplug the fan wire. Step 3: Remove the network card. Step 4: Remove the I/O ...

• Part No. CPMW2700IP-PCAP-DC - Case-6-120627-78017 - Question: How to replace LCD Panel with Brackets Kits?

  Step 1: Loosed the screws ( blue marked ) Step 2: a. Removed speaker cable ( green marked ) b. Removed Touch USB cable ( red marked ) c. Removed power cable ( blue marked ) d. Removed back cover carefully. Step 3: a. Removed Touch control flat cables ...

• Part No. APV1730HB - Case 6-OW-110736-79009 - Question: How to replace LCD Panel

  1. Remove screw x 4 to remove rubber bumper. 2. Remove screw x 18 3. Remove screw x 3 each side to replace the panel

• How to remove and replace ECHXXXXX-SIP units back plate for service

  Click the link below How to remove and replace ECHXXXXX-SIP units back plate for service

• Part No. CCPCW4300HDi7-PCAP-V4 - Case-6-120672-78550 - Question: How to replace LCD Panel?

  Step 1 Loosed the maintenance cover screws and removed it. ( blue marked ). Step 2 Removed Input power cable ( yellow marked ). Removed Power Switch cable ( blue marked ). Removed cooling Fan power cable ( red marked ). Removed PC OSD cable ( orange ...
