Part No. EPMW2700HDWV-DC-V2 - Case 6-120670-79343 - How to replace Power Board
Step 1:

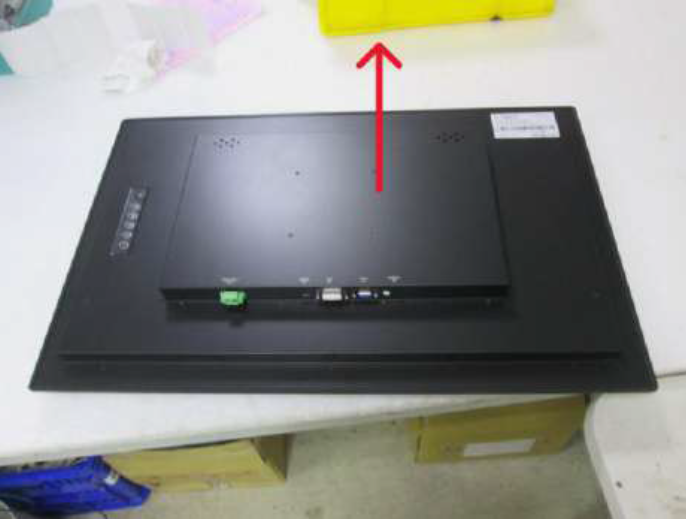

Loosed the rear cove Left/Right/Up/Down screws----blue marked
Step 2:
Removed the rear cover slowly---red marked
Noted: When you remove the rear cover, please pay more attention to the inner speaker cable and the inner power cable---green marked.
Step 3:

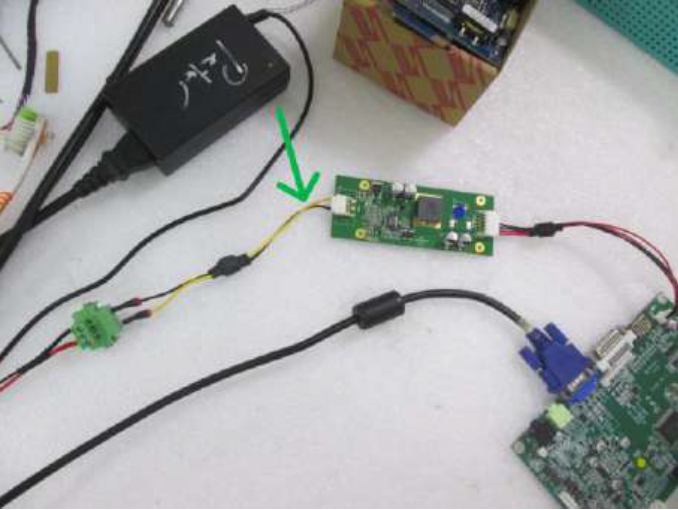

a. Loosed power board screws ( 4EA )---blue marked
b. Replaced the new power board
c. Speakers connector---red marked
Related Articles
Part No. YCHW1210HB2-TR-SK01 - Case-6-OW-111079-78732 - Question: How to replace Power Board?
How to replace Power Board Step 1. There are eight locking screws on the back cover of the screen, which can be removed directly with a cross screwdriver. Step 2. When opening the back cover, please note that there are three cables connected with it. ...Part No. NPW617HD-24 - Case 6-120365-79257 - How to replace AD Board Inverter?
Before your work, please make sure that the power is disconnected. Step 1: Remove all the LCD panel screws. (12 screws, 3 on each sides). Step 2: Remove the LCD panel frame. Step 3: Remove the LCD mounting screws on the back of the unit. (4 for each ...Part no.: CCHW3200IP-24V- S/N: C2842204001-4932-110806 - Question: How to Remove and Replace LCD Panel and 24VDC / 12VDC DC-DC Power Board?
Replacement Procedure. 1. Loosened screws and removed maintenance cover. (Blue Portion) 2. Loosened screws (Red Portion) 3. Loosened back cover’s screws ( bottom / right / left / top ). (Yellow Portion) 4. Removed. Power board and cables. (Green #1 ...Part No.: YCH1500HB-TR-DC - Case 6-OW-107338 - Male Connector for DC 9-36V Power Input (Model: DC-ME860-508-02G / DC-MC421-350-02G).
Customer Issue: I have a truck of mine that runs a camera system with LCD display provided by your store. The plug was broken or lost or something, anyway, it's just wires showing. Is there a harness you can direct me to, to replace this? Solution: ...Part No. ESPM2000B TR - Case 6-120273-78046 - How to replace Power & AD Boards.
1. Remove screws of clamp mount brackets. 2. Remove screws of LCD panel on back housing at left and right sides. 3. Lift up front bezel with LCD touch screen for replace power or AD board 4. Take photos for wires on boards before replacement. 5. ...
