How to change AD board from VGA + DVI to HDMI and DP - Model: AMil-1900HB-TR-AC
Part No.: AMil-1900HB-TR-AC
Sales Order: 110385
Dated: 03/21/2022

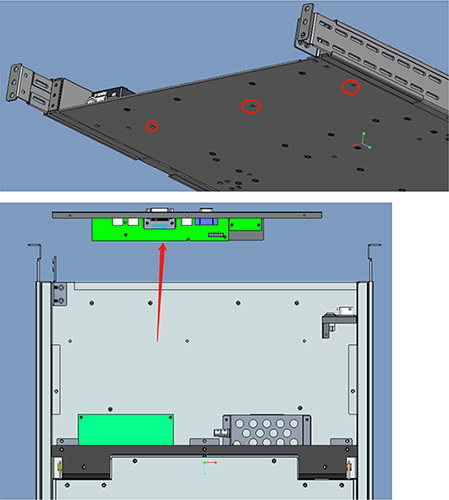

1. Remove screws x 10 to remove VGA base cover
2. Remove screws x 3 from the bottom to remove IO bracket set

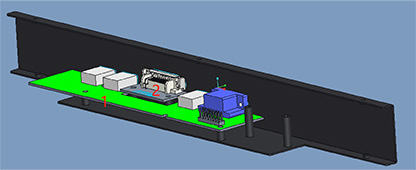

3. Move NO.1 PCB to the new IO Bracket, NO.2 (DVI) no needed anymore
4. New IO bracket with HDMI and DP

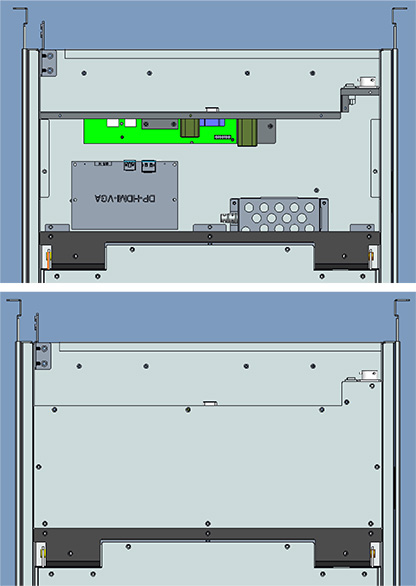

5. Replace new AD board set
6. Testing and finish assembly
