Part No.: NVP119-S801b - Case 75909 - Question: Is adding an auxiliary USB port or (ideally) two to the NVP119-S801b possible?

Question:
Is it possible to add an auxiliary USB port or (ideally) two to the NVP119-S801b, 12-669-B.  We want to be able to plug in a USB device and have it connected through the KVM.

Answer:

1. If you want the USB device to be used on all 8 PCs – NVP119-801Hb with NB-6 cables.

2. If the USB device to be used on a single PC – NVP119-S801b-USB (it’ll have a single USB port at the rear kit for peel to peel connection).

Question:

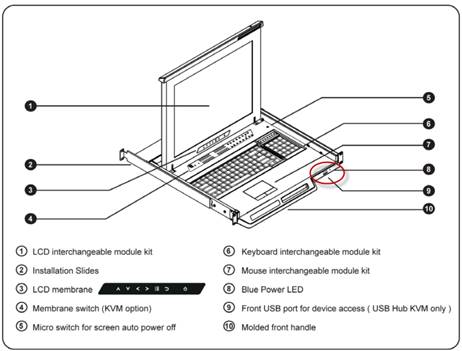

On the USB port, does the NVP119-801Hb populate the front USB port shown below?
For the NVP119-S801b-USB, how would this connection work if it only supports one PC?  Would there be a separate USB port going out to that PC?

Answer:

For NVP119-8010Hb – there is a front USB port on keyboard drawer as you mentioned, and it’ll be able to access all 8 devices thru NB-6 cable.

For NVP119-S801b-USB – there is also a front USB port on keyboard drawer (same location), but there is an individual USB port at the rear kit to directly connect to a single device for access/control.
