Part No. NVP2419WT-S801b - Case 6-OW-110464 - Instruction on Inspecting LVDS Cable ~ NVP2417 / NVP2419 Series
Before your work,
please make sure that the power is disconnected.
Step 1: Remove all the LCD panel screws. (13 screws)
Step 2: Remove the LCD mounting screw carefully in case of damage LCD panel. (4 screws)
Step 3: Unplug the LVDS cables carefully in case of damage the cables, and then remove the panel.
Step 2: Remove the LCD mounting screw carefully in case of damage LCD panel. (4 screws)
Step 3: Unplug the LVDS cables carefully in case of damage the cables, and then remove the panel.
Step 4: Please reverse the panel and
replace out the old/defective LVDS cable, and make sure to
connect well for new LVDS cable.

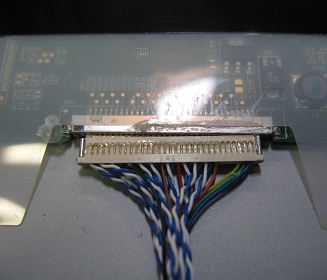

Connected well

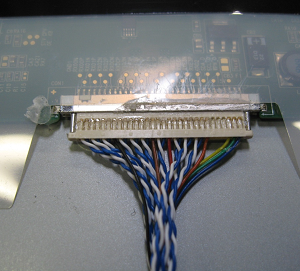

Not connected well
Step 5: Please reverse above steps to reassembly the unit back.
Step 5: Please reverse above steps to reassembly the unit back.
