Part No: AMil-W1730-D12b-AC - Case-6-120162 - Question: One of the Trackballs has quit responding. Is there a way to re enable it?
Customer Issue: One of the Trackballs has quit responding. Is there a way to re enable it?
Solution:
- First check if there is dirt/foreign object under the trackball and covering the laser.

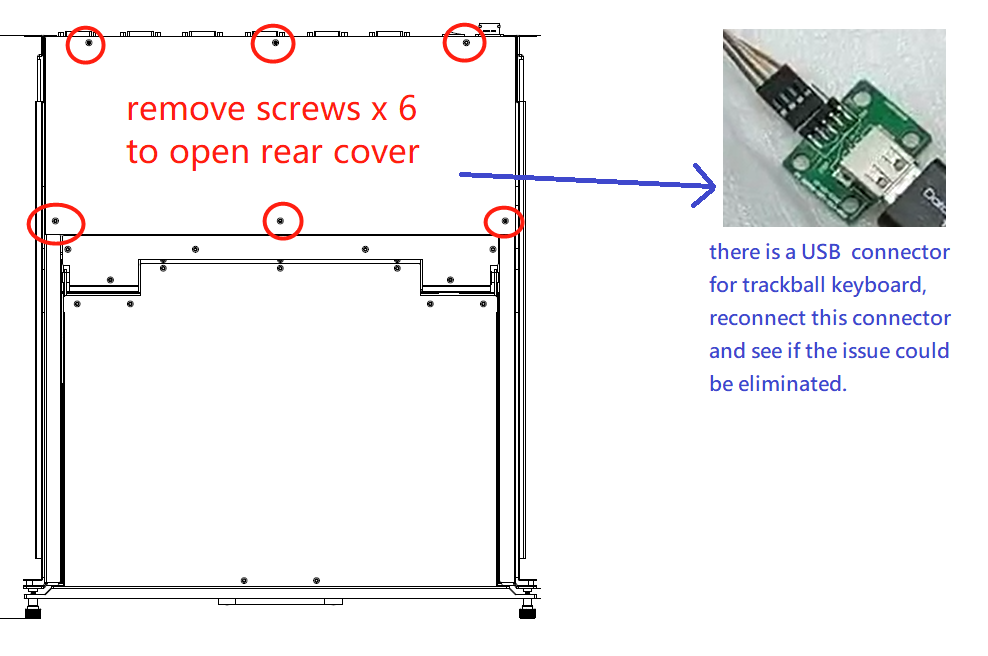

- Re-plug the keyboard internal cable. See below instruction.
