Part No.: CCHW3200IP-24V - SO: 6-110806-b - Question: How to Replace AD Board?

Replacement Procedure

1. Loosened screws and removed maintenance cover. (Blue Portion)

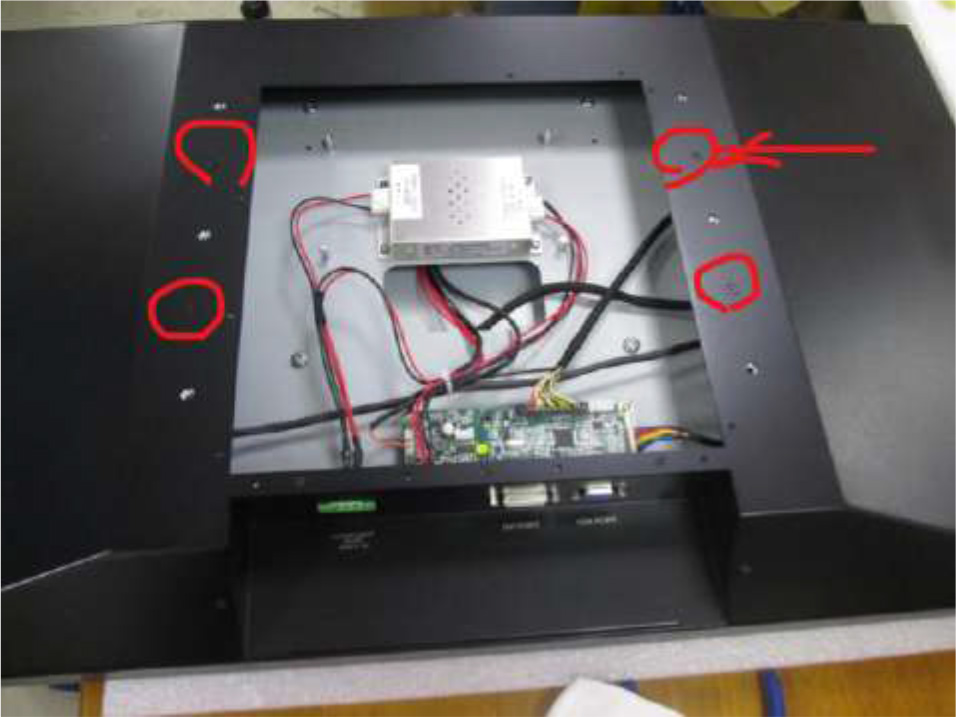

2. Loosened screws. (Red Portion)

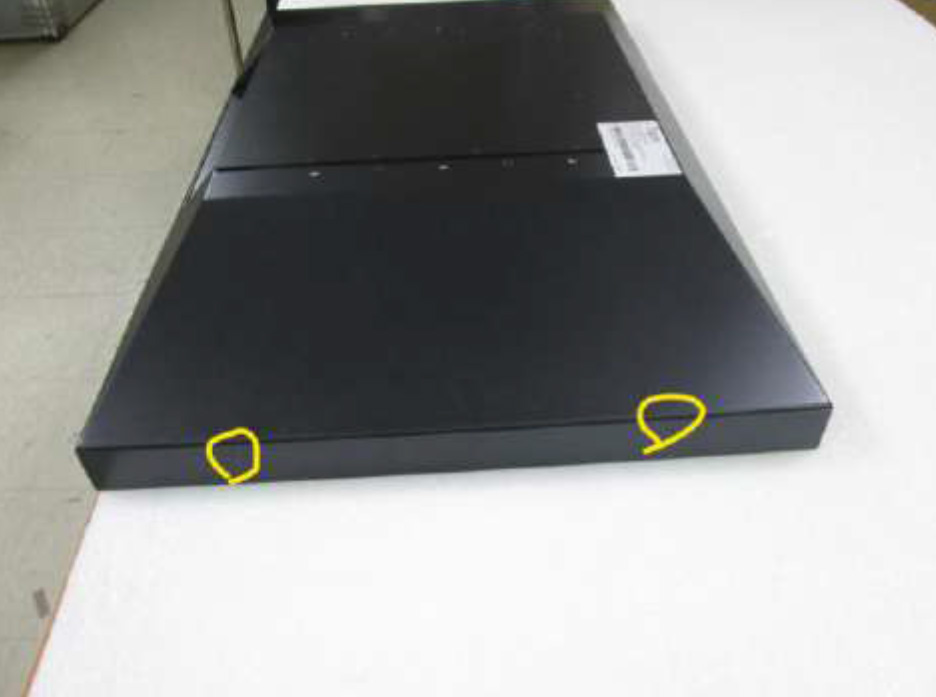

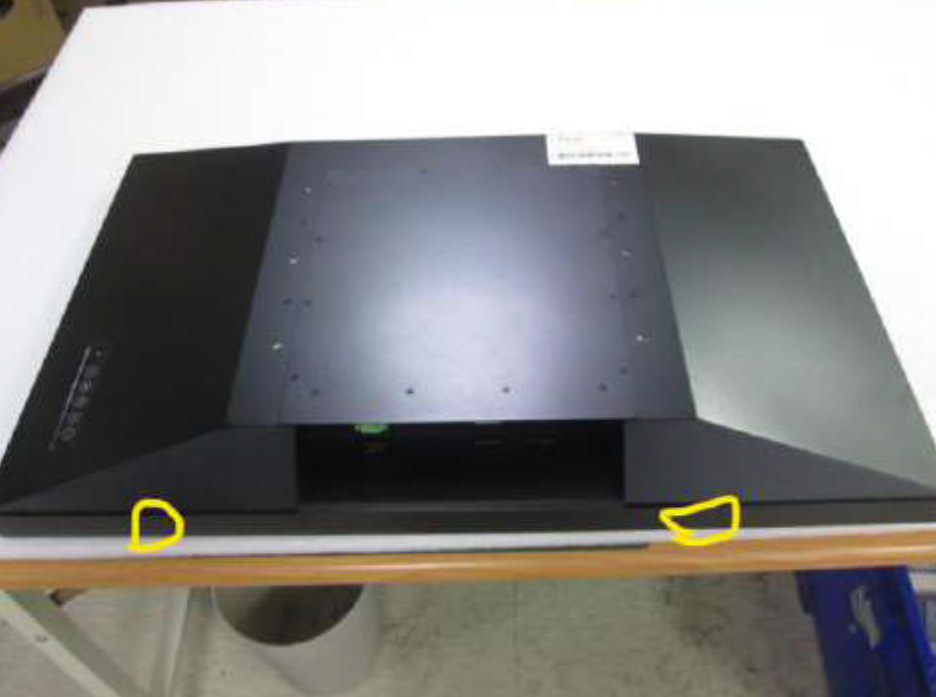

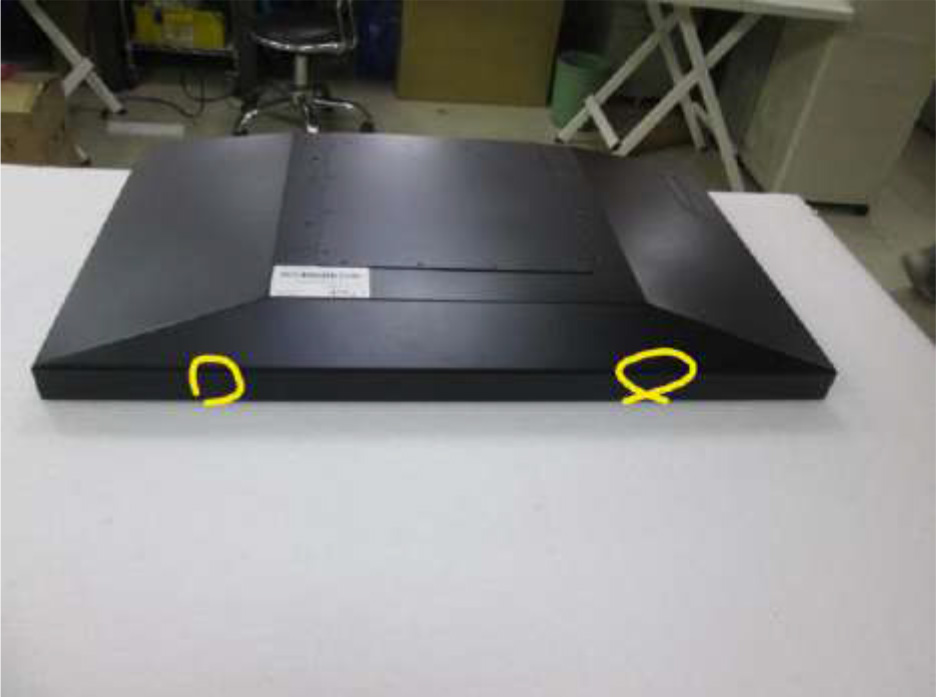

3. Loosened back cover’s screws ( bottom / right / left / top ) (Yellow Portion)

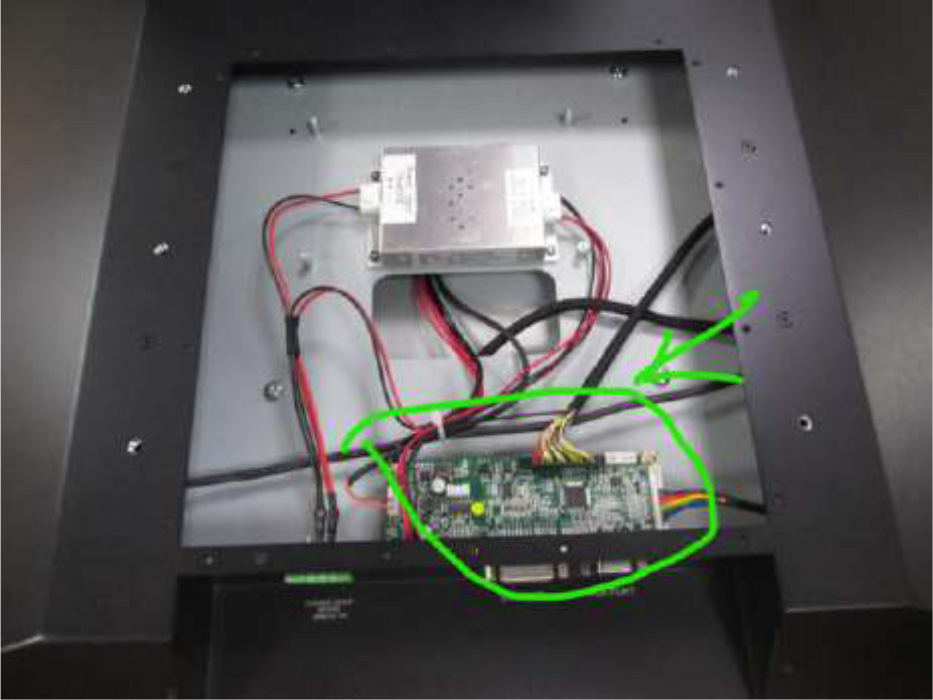

4. Removed AD board and cables. (Green portion and replaced the new AD board.)

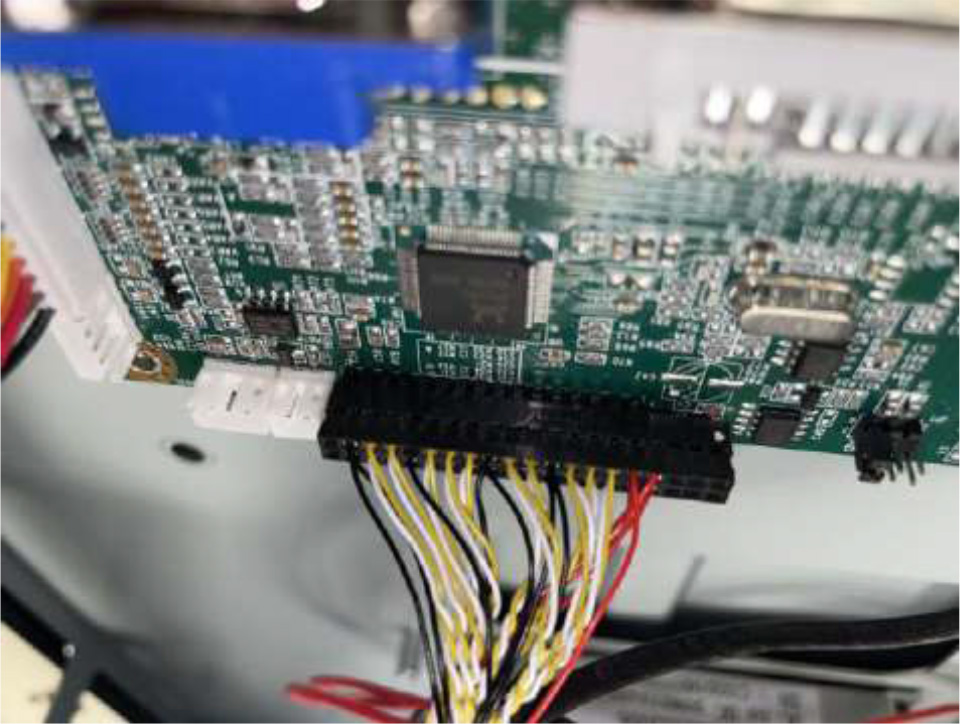

Note: Please make sure cables connection.

​
