Part No. CCHW6500-SIP-H - Case 6-120194-77571 - Question: How to replace AD Board?

Step 1.

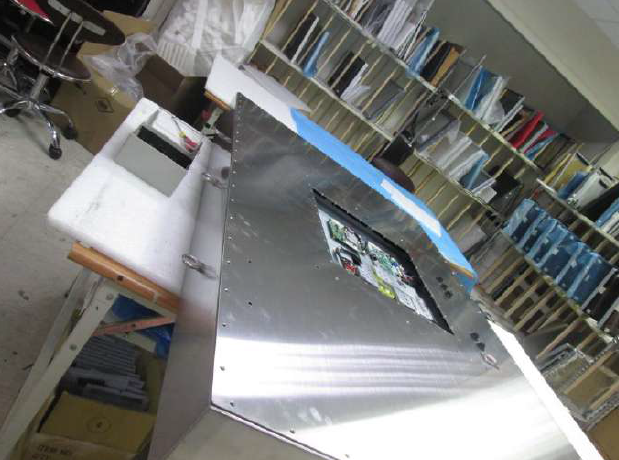

Loosed the screws and removed the maintenance cover. (blue marked)



Step 2.

Removed some cables and loosed AD board screws.

Red marked : LVDS cable

Yellow marked : Backlight cable

Green marked : 12VDC power input cable

White marked : HDMI cable, DVI cable with screws and

VGA cable with screws

Blue marked : OSD cable
