Part No.: DRP4W2150A-HB-HDMI - Case: 75864 - Question: Deployment Configuration?
Model: DRP4W2150A-HB-HDMI
Rugged 4U 26" Deep 21.5" Quad Display Drawer
Platform: Hydra Series
Frame: 26" Deep
LCD(s): (215HBx4) 4x21.5" FHD (1920x1080) LED Backlit High Bright Panels to 1500Nits
Controller(s): aRGB/VGA, HDMI, Display Port
Front: 4U Hydra Front Face w/ Thumbscrews & Heavy Duty Collapsible Handle
Lens: AR 1.1mm Optically Bonded Lens
Question: We are using rack case (Desapro Milex), I’m a little concerned about the weight being cantilevered and being able to flip the case over.. can you tell me how far out of the rack the displays have to be in a deployed configuration? For example, do they hang out 6”, 12”, 24”?

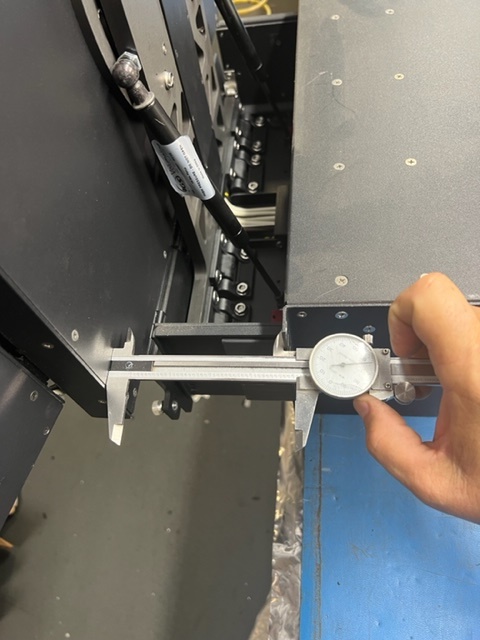

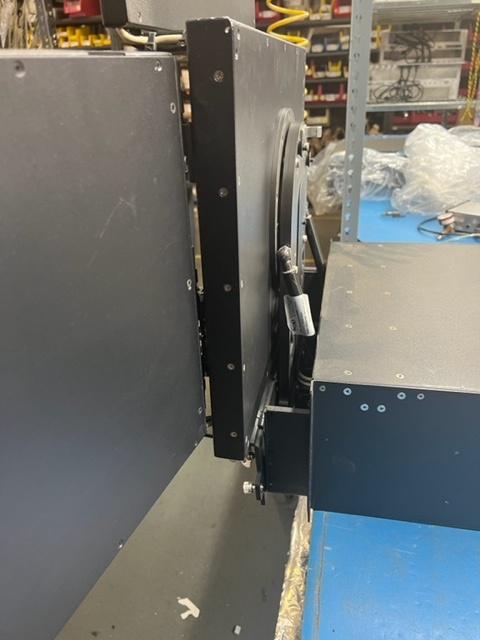

Answer: We were able to pull it out and deploy and still have 4 inches from the rack surface the lips of most transit cases are less than that.
