Part no: NPW617HD-TRB-24 - Case 6-120349 - Question: Screen does not look whole because it is displaced from its original position.

Issue:

Screen does not look whole because it is displaced from its original position

Solution: Open the LCD front frame then place it from its original position.

Before your work, please make sure that the power is disconnected.

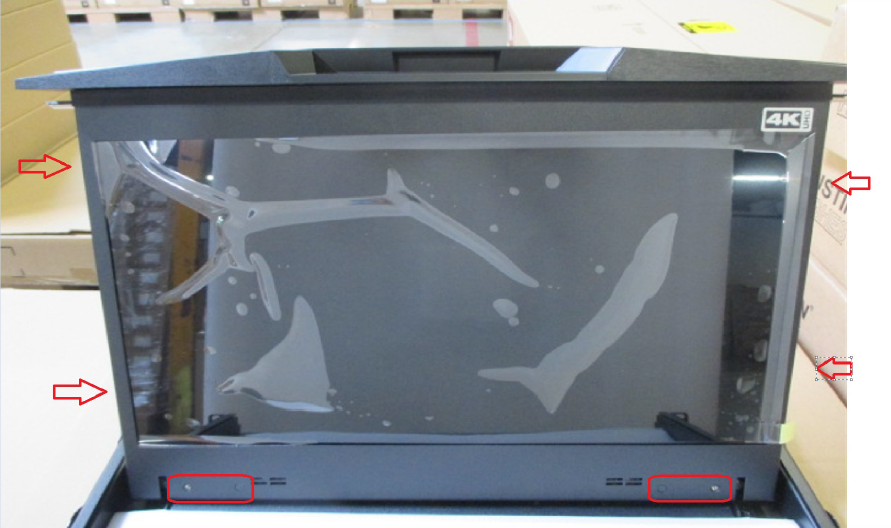

Remove all the LCD panel screws (12 screws) as shown below in order to release LCD front frame.
