Part no.: SCHW5500-SIP - S/N: C0041502001-104296a - Question: How to Remove and Replace Power Supply?
Replacement Procedure

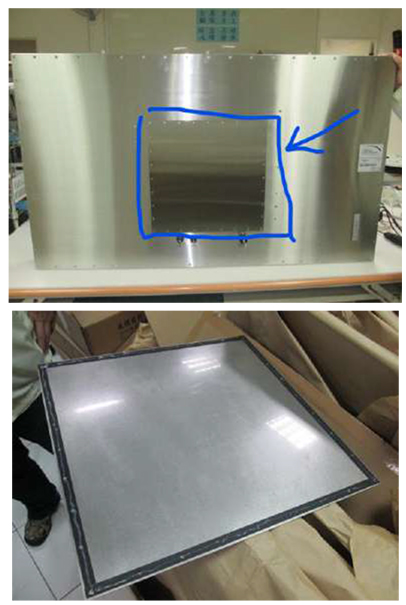

1. Loosened the screws and removed the maintenance cover. (Blue Portion).
1. Loosened the screws and removed the maintenance cover. (Blue Portion).
2. After the maintenance cover opened. Loosened the power board’s screws.
3. Replace the faulty Power Supply and Replace with a new one.
Related Articles
Part no.: CCHW3200IP-24V- S/N: C2842204001-4932-110806 - Question: How to Remove and Replace LCD Panel and 24VDC / 12VDC DC-DC Power Board?
Replacement Procedure. 1. Loosened screws and removed maintenance cover. (Blue Portion) 2. Loosened screws (Red Portion) 3. Loosened back cover’s screws ( bottom / right / left / top ). (Yellow Portion) 4. Removed. Power board and cables. (Green #1 ...How to Remove and Replace AD Board - Model: SCHW4200HB-SIP-V1
Part no: SCHW4200HB-SIP-V1 SO: 1103041a Replacement Procedure 1. Loosed the stainless screws of the maintenance cover and removed the maintenance cover ( with waterproof gasket )... blue portion. 2. Loosed the waterproof cover ( DVI ) and loosed the ...Part No. CCHW4600HBP-SIP-U1 - Case 6-120505-78047 - Question: How to replace AD Board?
Tools: Screw Driver, Knife, Wrench and Silicon Step 1. Loosed the stainless screws and removed Top cover ( blue marked ) Step 2: Loosed the stainless screws, disconnected cooling fan power ( red marked ) and removed the cover ( yellow marked ). Step ...Part No. YCHW1210HB2-TR-SK01 - Case-6-OW-111079-78732 - Question: How to replace Power Board?
How to replace Power Board Step 1. There are eight locking screws on the back cover of the screen, which can be removed directly with a cross screwdriver. Step 2. When opening the back cover, please note that there are three cables connected with it. ...Part No. NVP117-S801e - Case-6-OW-103662-78353 - Question: How to remove and change internal Power Adapter?
“Before your work, please make sure that the power is disconnected.” Step 1: Remove the top rear kit cover. 7 screws on the top, 4 screws on each side. Step 2: After cover removed, cut off the cable tie and disconnect the power adapter. Then replace ...
