Part No.: SPCW2150i7-FW9-PCAP - Case: 6-110251a - How to fix color cycle mode in screens?
Question: Various of our latest screens are doing this weird color cycle mode and we cant get out of it.
See reference video below:
Answer: It seems the system is working well but LCD display. It may be caused by setting of LVDS resolution lost. This issue might be caused by the battery of the computer CMOS is dead. So, when the computer is turned on, the CMOS jumps back to the default value of the LCD itself, 1024 x 768. We recommended not to remove the power, otherwise you have to restart the power and reset the resolution.
Follow the steps below to change the settings.
1. Press "Del" or "F2" button to enter BIOS

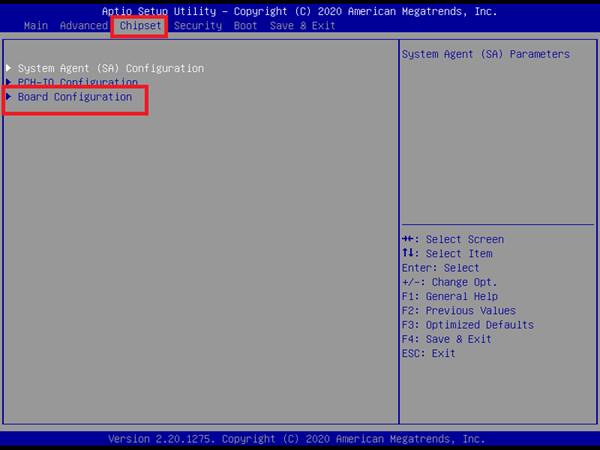

2. Select Chipset\Board Configuration

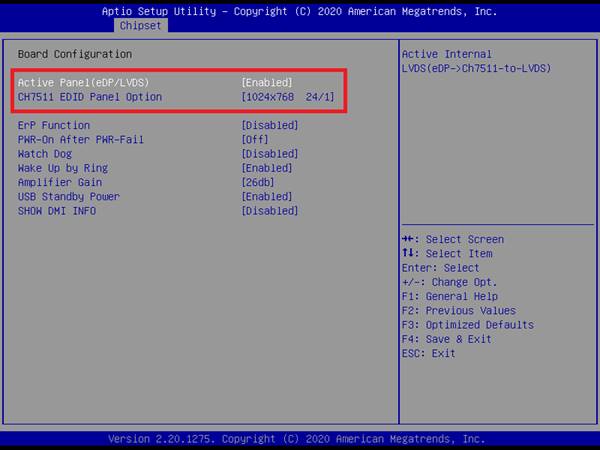

3. Check the value of "Active Panel (eDP/LVDS)" & "CH7511 EDID Panel Option"
Active Panel (eDP/LVDS) -> Enable
CH7511 EDID Panel Option -> 1920x1080 24/2
4. Press F10 to save and exit BIOS setting. Or you can refer the mainboard user manual below.
Afte changing from 5-Wire Resistive Touch to PCAP Touch, need to update the Firmware of PCAP Touch. Completely unzip the archive and execute the update archive "eGalaxUpdate2.exe" Download link below. ...
Problem: Once power is applied we receive a screen with multi-color bars across the screen and then it goes blank. Solution: The issue cause by connection loosen. After reconnect, the monitors work normally. See below picture for reference:
TOOLS 3M Double sided tape 1.1mm Screw driver New bracket PCAP screen Touch controller Nylon gloves Fishing line STEPS Step 1: Loosen the 8 screws of rear side and keep aside Step 2: Turn to front side and disconnect LED Cable LCD Cable Touch FFC USB ...
Step1: Flip monitor to rear side and then remove the foam tape at 4 sides. Step 2: Loosen the 14 screws at the rear cover and keep it safe. Step 3: Caution! DO NOT lift up rear cover at this step in case to broken the flexible flat cable of touch ...
NOTE: When disassembling, please note and mark the original wires and screw positions. STEPS: Step 1: Remove the back cover screws, remove the back cover. Step 2: Remove/Unplug the fan wire. Step 3: Remove the network card. Step 4: Remove the I/O ...
