Part No.: YCH2130-SN01-V1 - Case: 6-110271a - Question: Multi-color bars across the screen?
Problem: Once power is applied we receive a screen with multi-color bars across the screen and then it goes blank.
Solution: The issue cause by connection loosen. After reconnect, the monitors work normally.

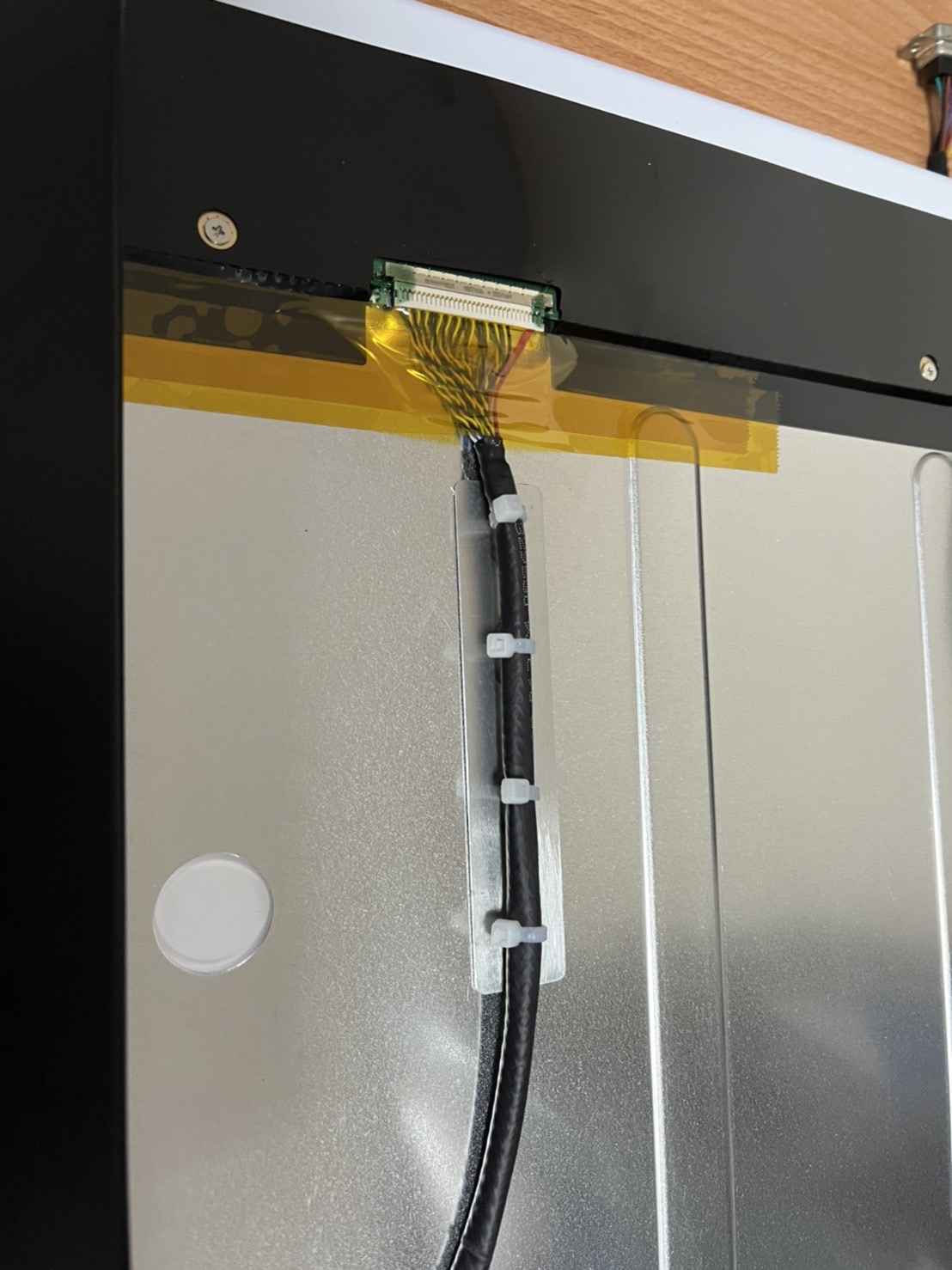

See below picture for reference:
