Part No.: CPMW2700IP-PCAP-DC - Case 6-120627-78017 - Question: OSD Auto Adjust Function Procedure.
OSD Auto Adjust function Procedure.

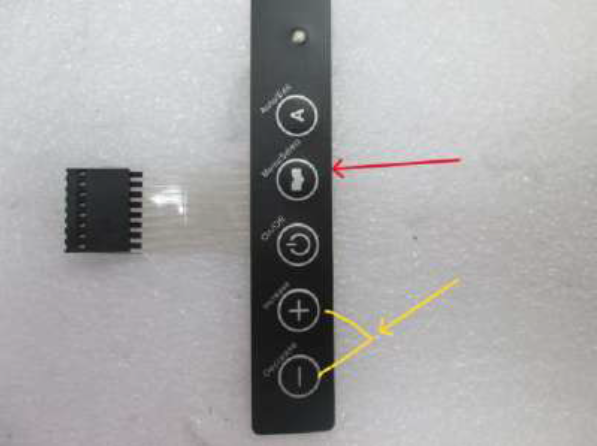

1. OSD key function
Manual / Select button ---red marked
+ / Increase or - / Decrease button ----yellow marked

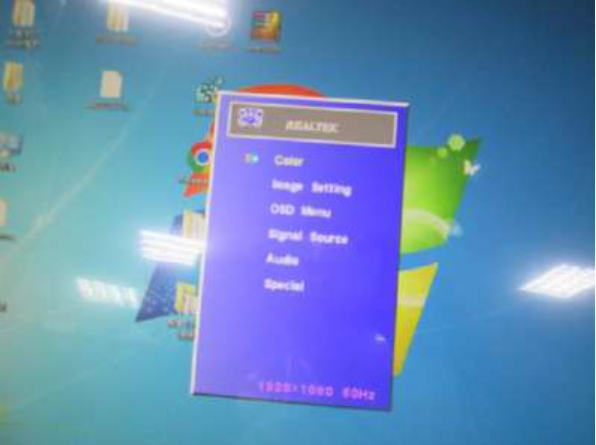

2. Pressed Manual / Select button
3. Pressed + / Increase ) or - / Decrease ) button to “ Special “ item
4. Pressed Manual / Select button

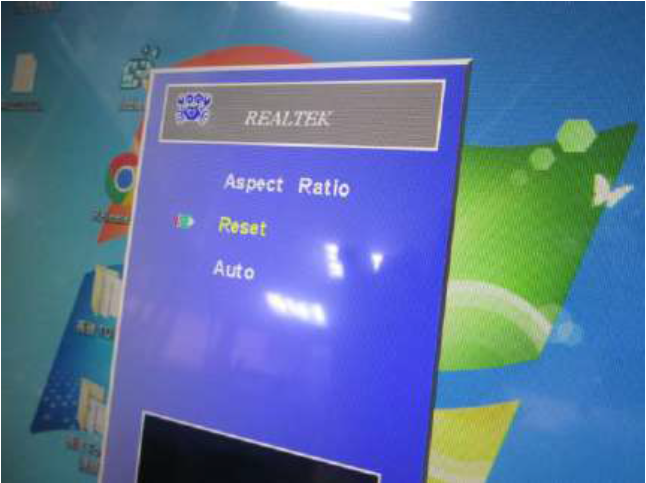

5. Pressed + ( Increase ) / - ( Decrease ) button to “ Reset “ item

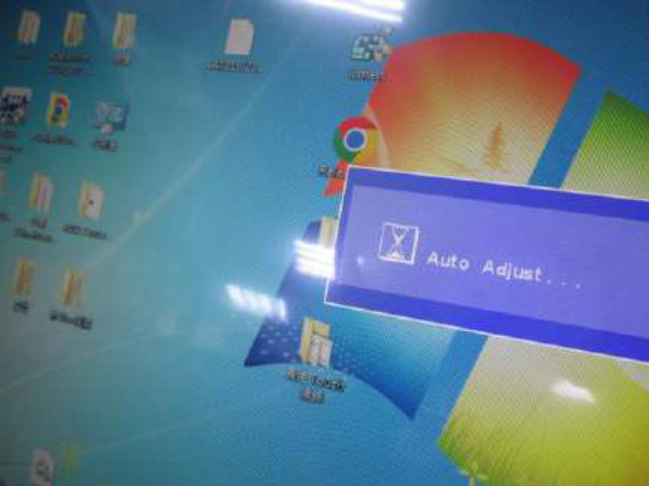

6. Pressed Manual / Select button than monitor will run “ Auto Adjust “ function.
