Part No. CPMW2700IP-PCAP-DC - Case-6-120627-78017 - Question: How to replace LCD Panel with Brackets Kits?

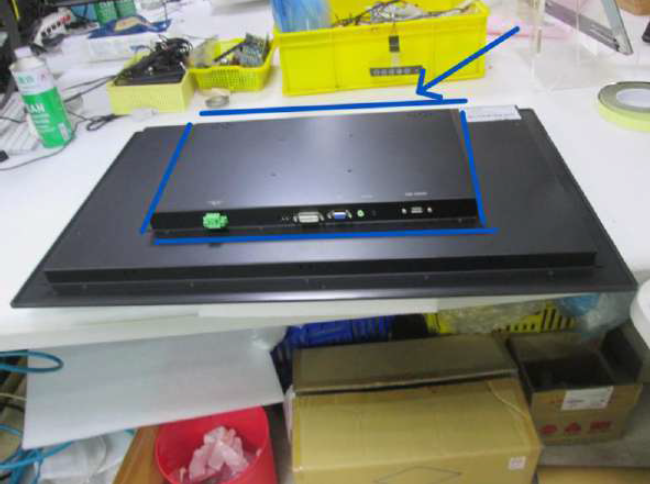

Step 1: Loosed the screws ( blue marked )
Step 2:
a. Removed speaker cable ( green marked )
b. Removed Touch USB cable ( red marked )
c. Removed power cable ( blue marked )
d. Removed back cover carefully.

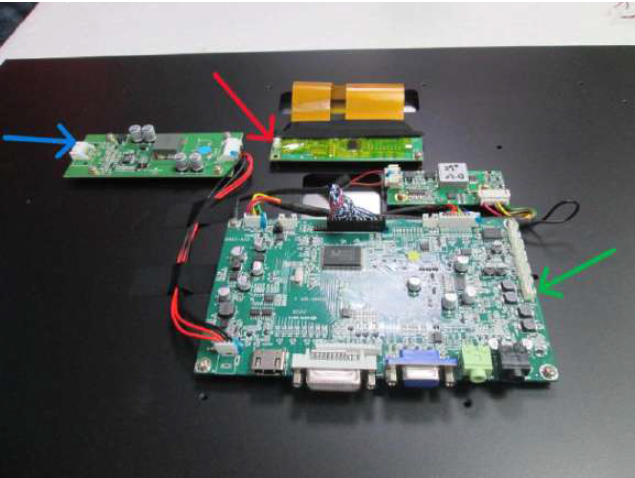

Step 3:
a. Removed Touch control flat cables ( 2 pcs / blue marked ) carefully
b. Removed Invertor cable ( 2 pcs / yellow marked ) carefully
c. Removed OSD cable ( green marked )
d. Removed LVDS cable ( red marked )
Note : LVDS cable connected.( blue marked )

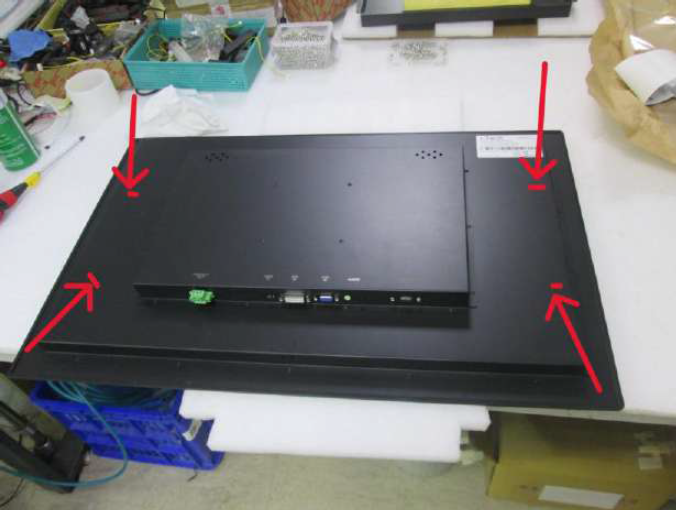

Step 4: Loosed the panel’s angle brackets screws ( 4 pcs / red marked )
Step 5:

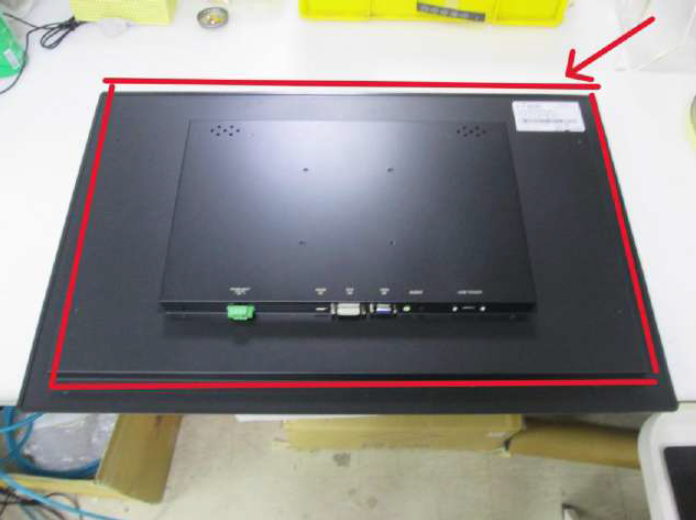

a. Loosed rear housing’s screws ( short black screws / redmarked )
b. Removed rear housing

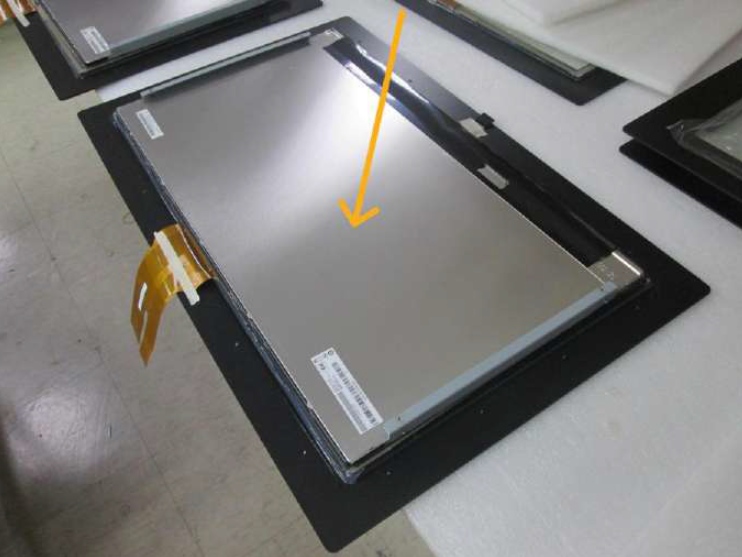

Step 6: Cleaned panel surface and replaced the panel with angle brackets kits.
Noted: There are two different size for black screws.
