Part No. CCPCW4300HDi7-PCAP-V4 - Case-6-120672-78550 - Question: How to replace LCD Panel?

Step 1

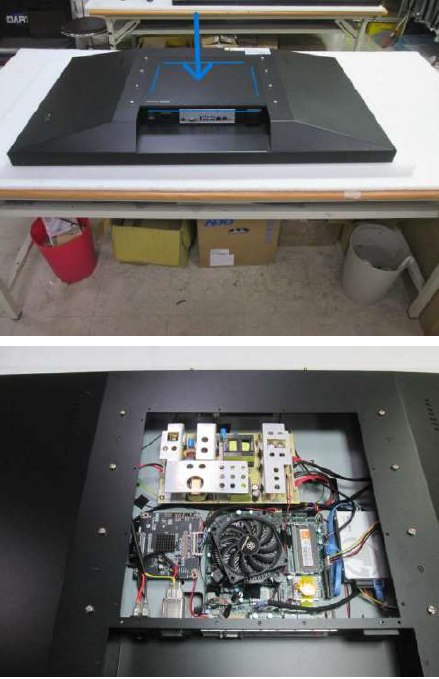

Loosed the maintenance cover screws and removed it. ( blue marked ).

Step 2

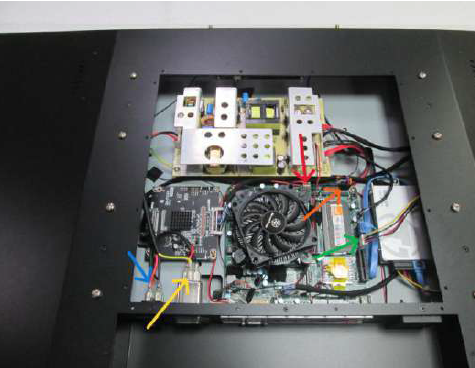

1. Removed Input power cable ( yellow marked ).
2. Removed Power Switch cable ( blue marked ).
3. Removed cooling Fan power cable ( red marked ).
4. Removed PC OSD cable ( orange marked ).
5. Removed hard disk power cable ( green marked ).


Step 3

Removed black tapes and removed antenna cable x2 ( red marked ).

Step 4

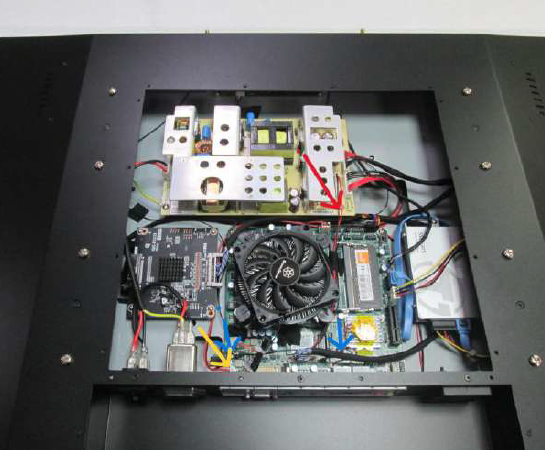

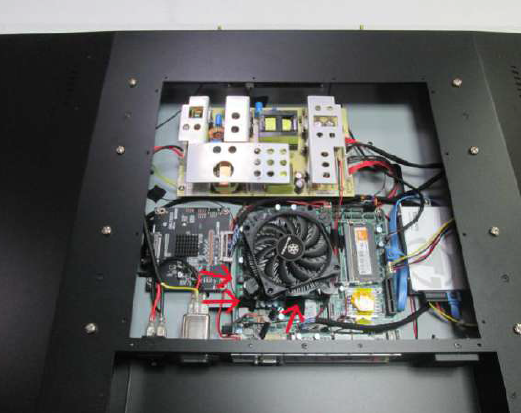

1. Removed motherboard input power cable ( yellow marked ).
2. Removed LVDC Ground cable ( blue marked ), LVDS cable power cable ( red marked ) and removed LVDS cable ( blue marked ).

Step 5

1. Removed panel invert cable ( green marked ).
2. Removed hard disk SATA cable ( yellow cable ).


Step 6

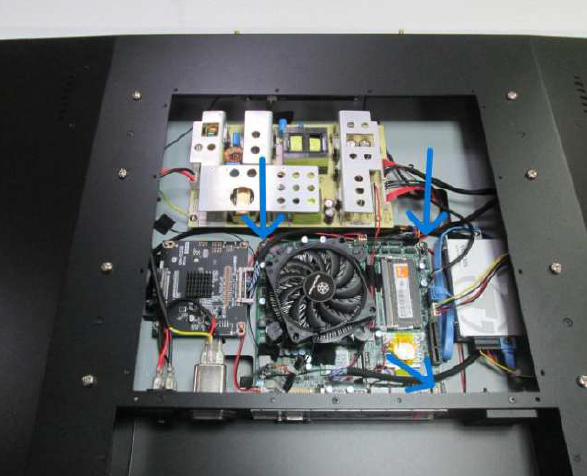

Loosed mother board screws x 3EA ( blue marked ) and removed mother board carefully.

Step 7

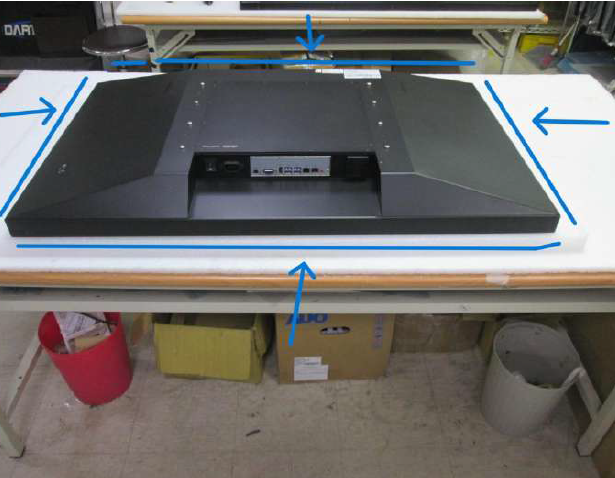

Loosed the rear enclosure 4 sides’ screws ( blue marked ).

Step 8

Loosed rear enclosure’s screws ( red marked / blue marked ) then removed the rear enclosure ( yellow marked ).

Step 9

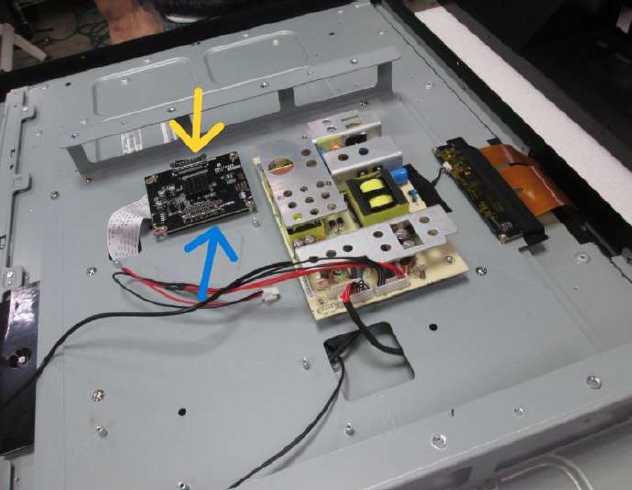

Removed logic board’s cables ( blue marked / yellow marked ).

Step 10

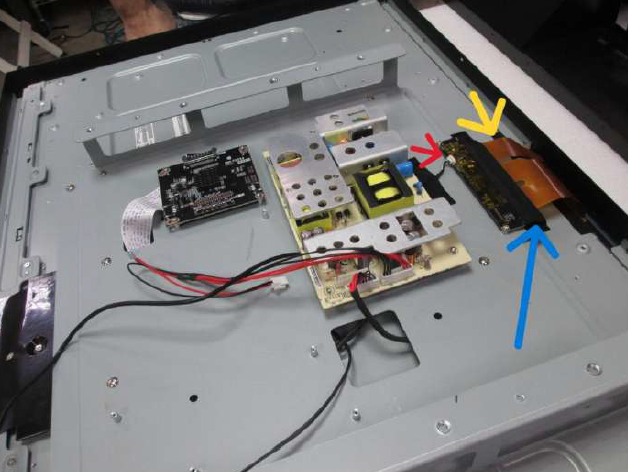

1. Removed black tape ( blue marked ).
2. Removed flat cables ( yellow marked ).
3. Removed USB connector ( red marked ).


Step 11

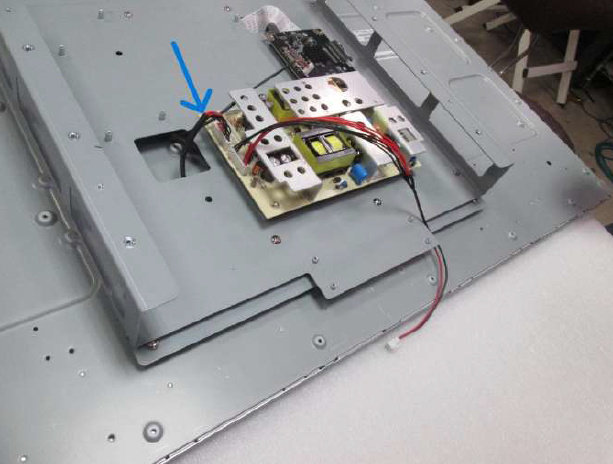

Removed backlight cable ( blue marked ).

Step 12

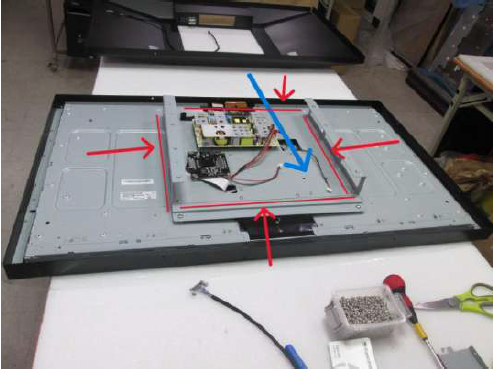

Loosed fixture’s 4 sides screws ( red marked ).

Step 13

1. Removed black tapes ( black marked ).
2. Removed backlight cable ( yellow marked ).
3. Removed LVDS flat cable ( red marked ).


Step 14

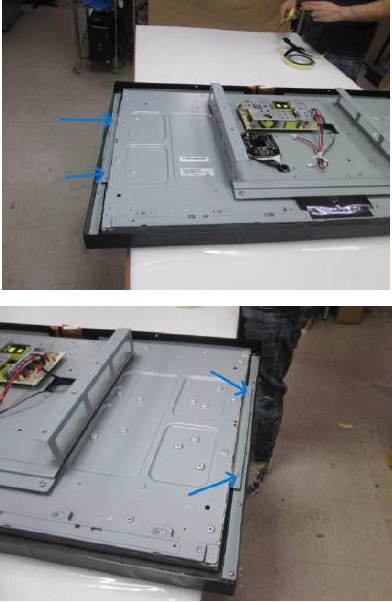

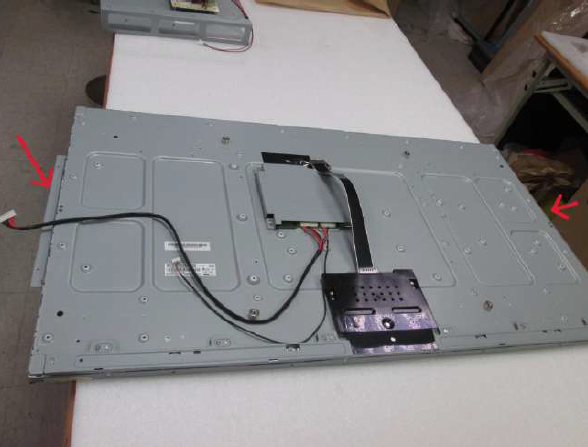

Loosed panel’s left / right side “ L bracket “ screws ( blue marked ).

Step 15

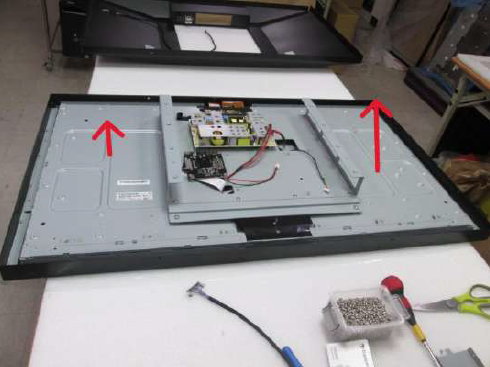

Lifted the panel carefully because of P-CAP Touch. Please pay more attention to P-CAP Touch’s flat cable.

Step 16

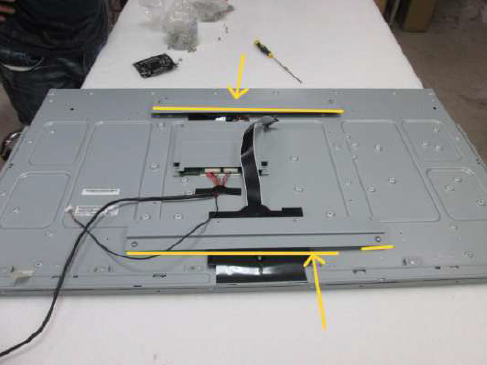

Loosed brackets’ screws ( yellow marked ).

Step 17

Locked left / right side “ L bracket “ to new panel.
