Part no.: AMil-W1730-D12b-AC - Case 6-120162 - Issue: Display is dark
Customer Issue:
I can't get the screen up for adjusting the display either. The display is just dark, like it doesn't have power.
I can't get the screen up for adjusting the display either. The display is just dark, like it doesn't have power.
Solution:
Check if the LVDS Cable is loosen or not plugged in. See below for instruction.
Check if the LVDS Cable is loosen or not plugged in. See below for instruction.
How to check panel LVDS Cable

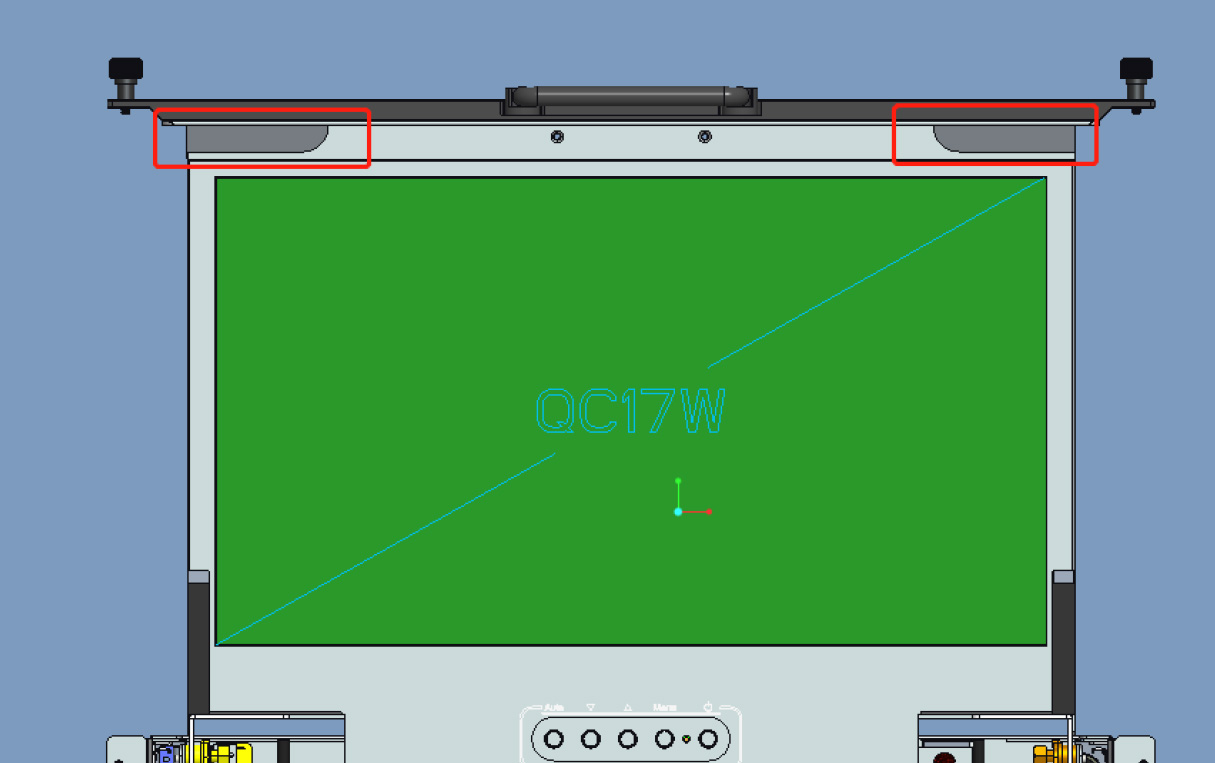

1. Remove rubber pad x 2

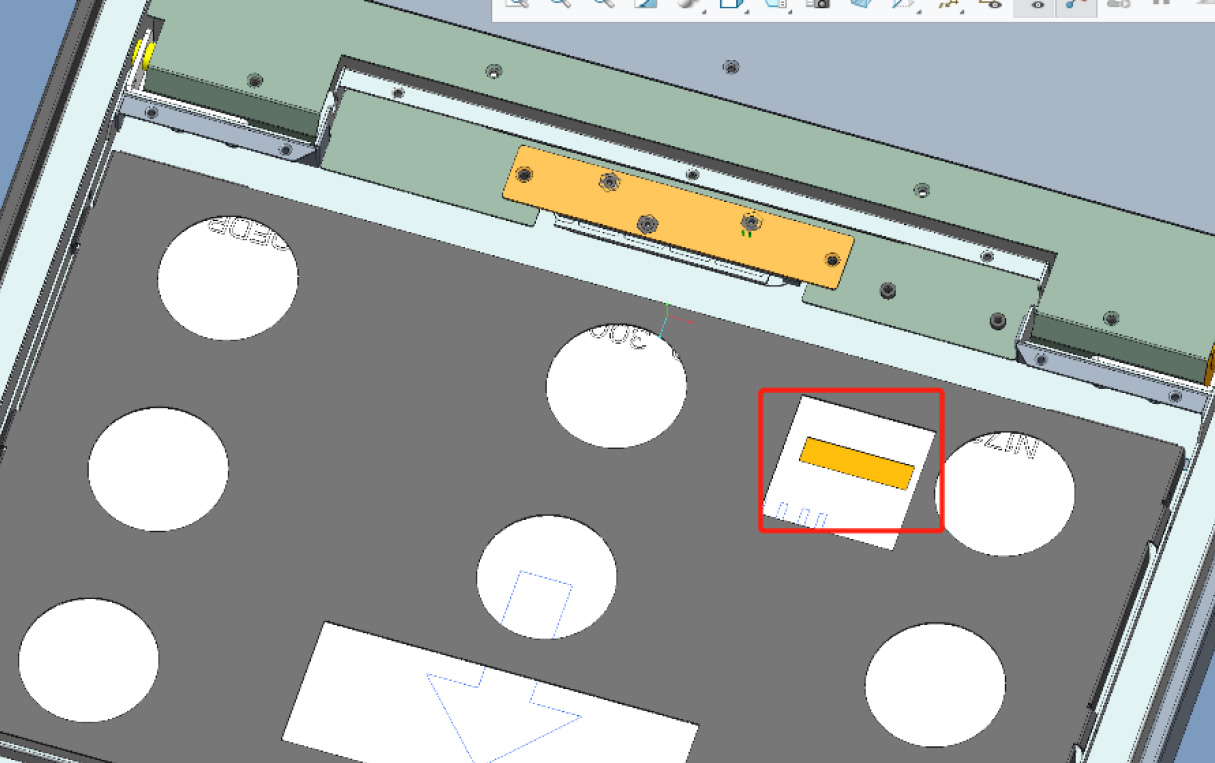

2. Remove screw x 6 each side + 2 + 7 to remove back cover

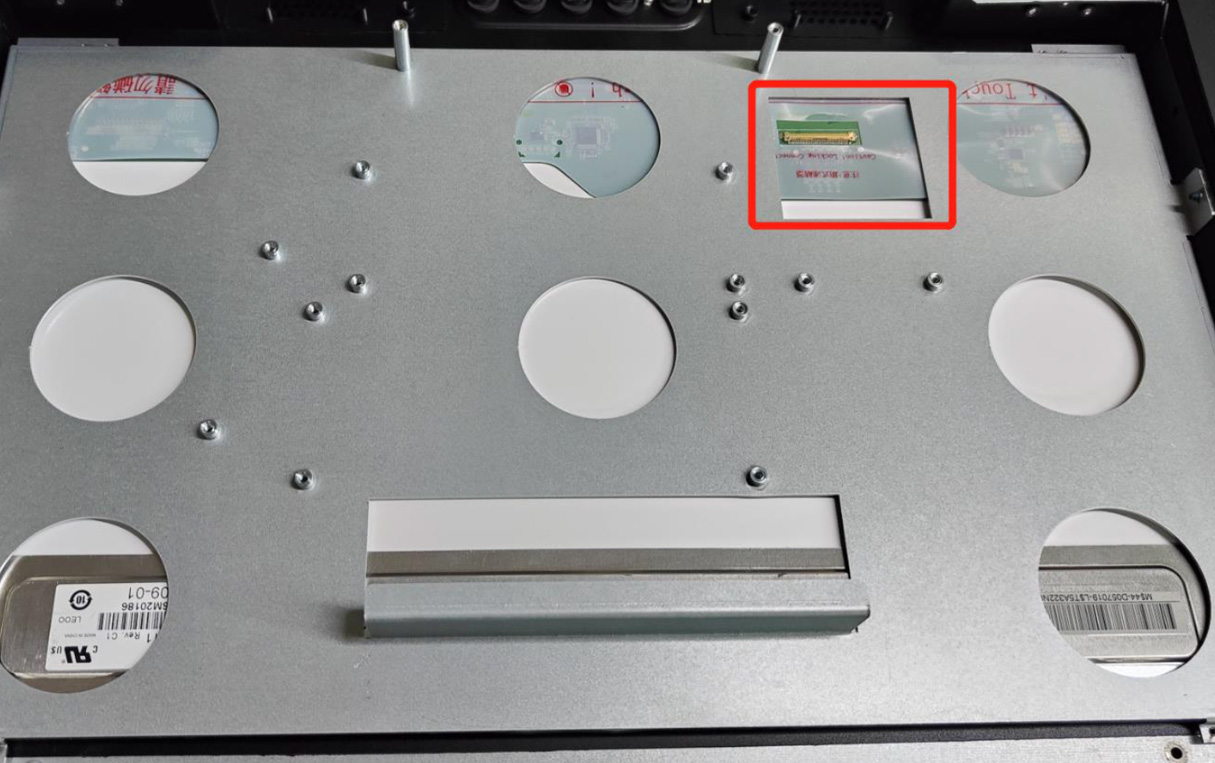

3. Check and re-plug the cable that is connecting to the LCD panel.
