Part no.: YOP1700HB2WT-TR - Case 6-110118 - How to remove and replace 5 Wires Resistive Touch?
Case 6-110118

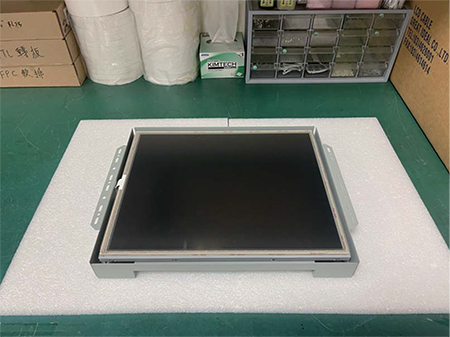

Wide Temp -30C to 85C Open frame, 17" LCD monitor, 1280 x 1024, super high brightness 1500 nits VGA Input (Auto dimming control)(without RS232 control) + 17"- 5 Wires Resistive Touch with USB Controller

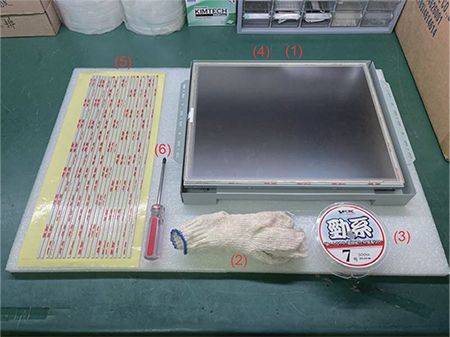

Tools
- 17" Opem Frame Touch LCD Monitor
- Nylon Gloves
- Fishing Line
- Resistive Touch
- 3M double sided tape 1.55mm
- Screwer
Replace Steps:

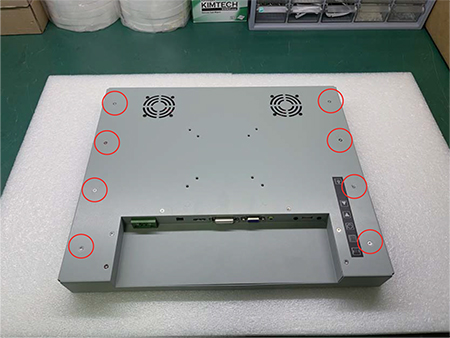

1. Unscrew 8 screws on the rear cover.

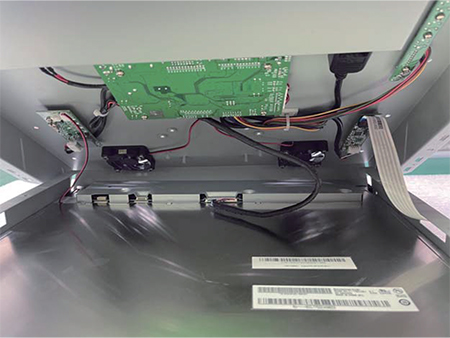

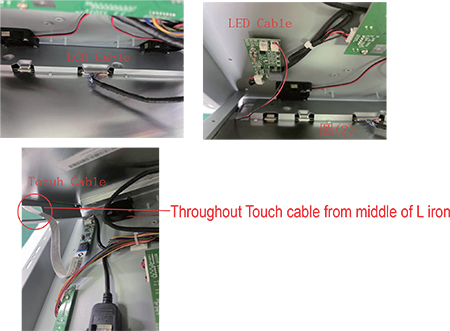

2. Lift up middle housing and disconnect LCD cable / LED cable / Touch cable, Total 3 cables.

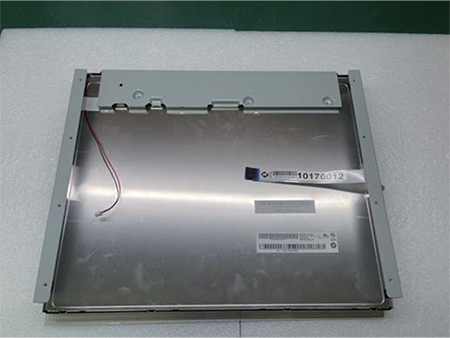

3. Take panel out from middle housing

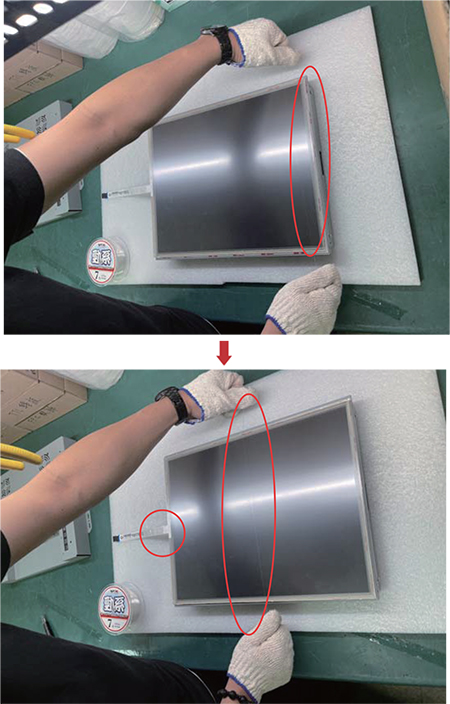

4. Fold in half 200cm fishing line and put on nylon gloves. Use fishing line to separate panel and touch from right side Then pull horizontal When pass by touch controller cable, lift it up and keep going.
Do not broken off cable.

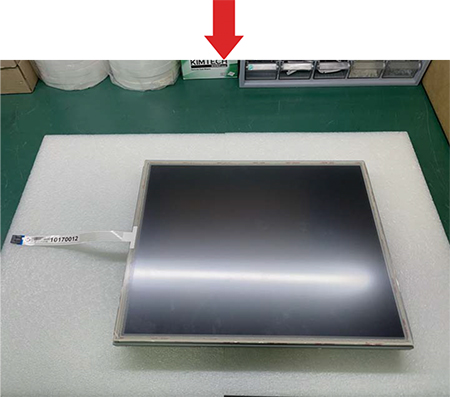

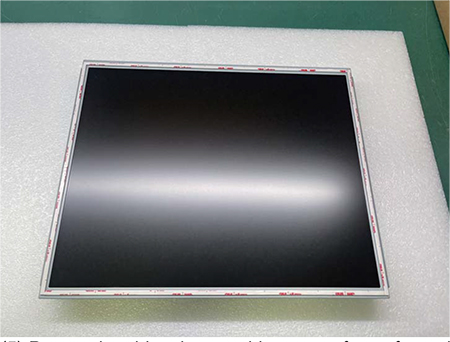

5. Put touch aside, clean residue on surface of panel, paste double sided tape on square of panel surface.
6. Bonding resistive touch and panel with carefully.
7. Turn panel to rear side, cover with middle housing, then reconnect LCD cable / LED cable / Touch cable.

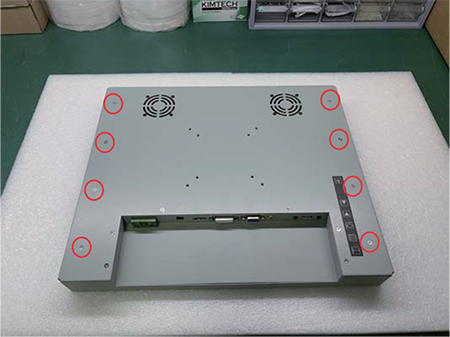

8. Turn monitor to rear side and screw back 8 screws.
Finished
