Part No. ESPM2000B TR - Case 6-120273-78046 - How to replace Power & AD Boards.

1. Remove screws of clamp mount brackets.

2. Remove screws of LCD panel on back housing at left and right sides.

3. Lift up front bezel with LCD touch screen for replace power or AD board

4. Take photos for wires on boards before replacement.

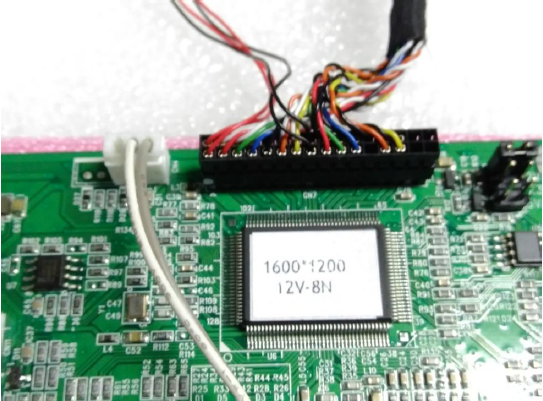

5. Please be careful the alignment of LVDS (panel) cable on AD board, don’t reverse in connection or shift pin.

6. LVDS (Panel) cable on panel side, don’t reverse in connection. Press clips on both sides of cable’s connector for disconnection.

• Related Articles

• Part No. YCHW1210HB2-TR-SK01 - Case-6-OW-111079-78732 - Question: How to replace Power Board?

  How to replace Power Board Step 1. There are eight locking screws on the back cover of the screen, which can be removed directly with a cross screwdriver. Step 2. When opening the back cover, please note that there are three cables connected with it. ...

• Part No. NPW617HD-24 - Case 6-120365-79257 - How to replace AD Board Inverter?

  Before your work, please make sure that the power is disconnected. Step 1: Remove all the LCD panel screws. (12 screws, 3 on each sides). Step 2: Remove the LCD panel frame. Step 3: Remove the LCD mounting screws on the back of the unit. (4 for each ...

• Part No. CCHW4600HBP-SIP-U1 - Case 6-120505-78047 - Question: How to replace AD Board?

  Tools: Screw Driver, Knife, Wrench and Silicon Step 1. Loosed the stainless screws and removed Top cover ( blue marked ) Step 2: Loosed the stainless screws, disconnected cooling fan power ( red marked ) and removed the cover ( yellow marked ). Step ...

• Part No.: EPM2010B TR_HDMI+DP - Case: 6-110117-a - How to replace AD Board on EPM2010B TR_HDMI+DP?

  Remove mounting brackets to separate front bezel. Remove screws of touch panel on both sides of back housing, and then lift touch panel for Ad board replacement. Made mark or take photo before replacement for further recovery. Replace Ad board, the ...

• Part No. CCHW6500-SIP-H - Case 6-120194-77571 - Question: How to replace AD Board?

  Step 1. Loosed the screws and removed the maintenance cover. (blue marked) Step 2. Removed some cables and loosed AD board screws. Red marked : LVDS cable Yellow marked : Backlight cable Green marked : 12VDC power input cable White marked : HDMI ...
