Part No.: EPM2010B TR_HDMI+DP - Case: 6-110117-a - How to replace AD Board on EPM2010B TR_HDMI+DP?
- Remove mounting brackets to separate front bezel.
- Remove screws of touch panel on both sides of back housing, and then lift touch panel for Ad board replacement. Made mark or take photo before replacement for further recovery.

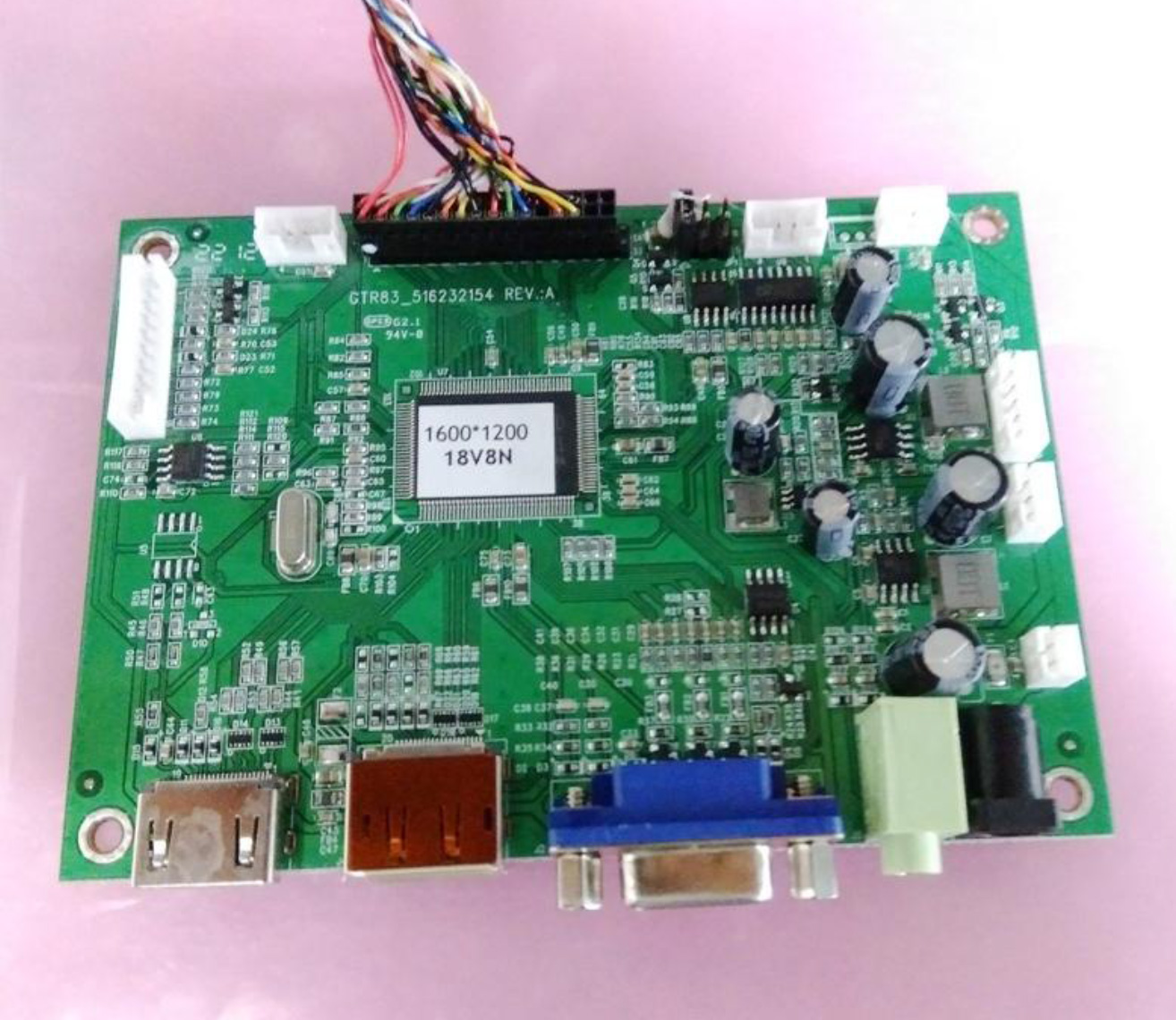

- Replace Ad board, the whit dot of LVDS cable aligns tri-angle mark on PCB. Be careful don’t be reversed nor pin-shifting.
