Part No. CCHW4600HBP-SIP-U1 - Case 6-OW-120505-79523 - How to check Front Bezel Bracket
Front Bezel Bracket Check Instruction
Step 1.
- Loosed the screw ( red marked )
- Removed cable ( green marked ) and cover ( red marked )
Step 2.

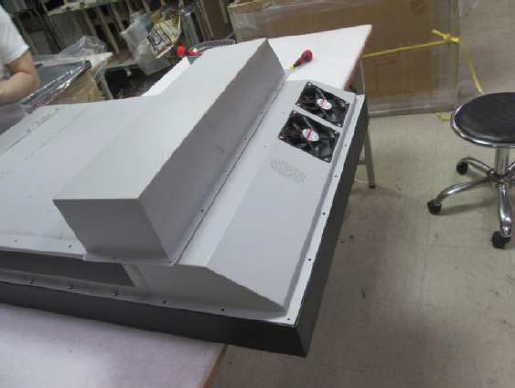

Loosed the screws and removed the cover.
Step 3.

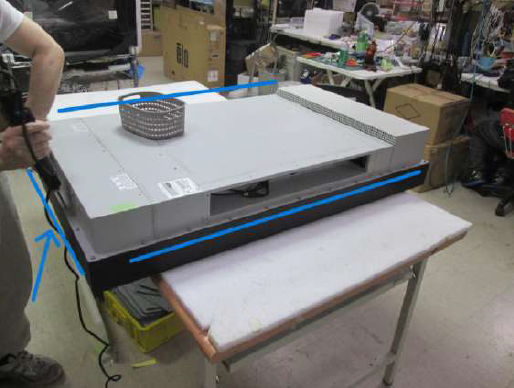

Loosed the rear cover’s screws ( blue marked )
Step 4.
Opened the rear cover carefully ( red marked )
Step 5.

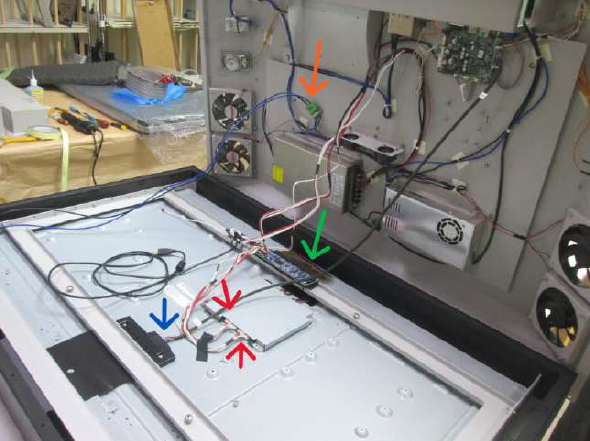

- Removed blue/ black power cable ( orange marked ), LVDS cable
- ( blue marked ), Backlight cable x2 ( red marked )

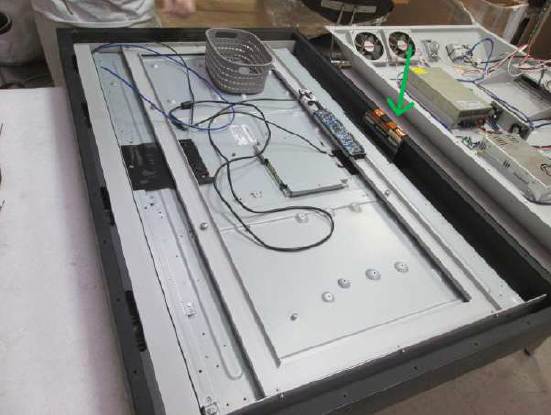

- Removed P-CAP Touch control card’s Flat cable ( green marked ) carefully.
Step 6.

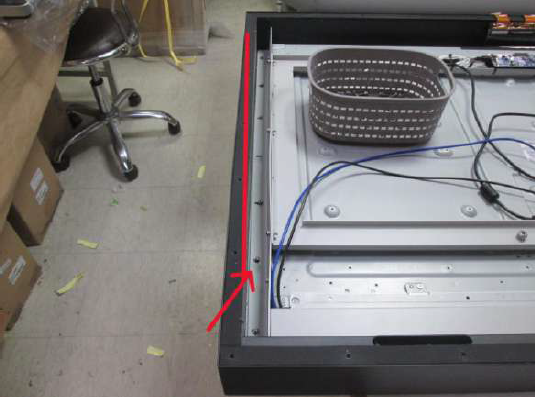

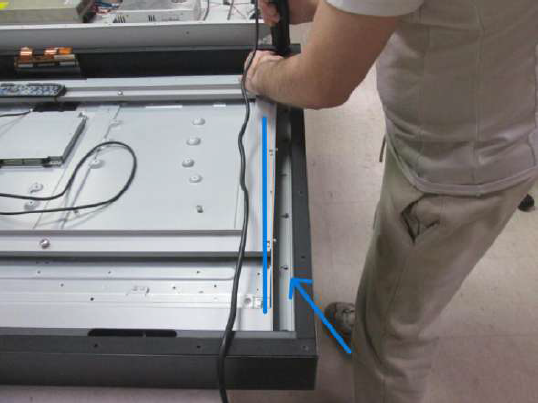

Loosed Left/Right screws ( blue marked, red marked )
Step 7.
- Please pay more attention to Blue/ Black power cable ( red marked )
- Lifted up the panel by two persons carefully ( blue marked )
Step 8.

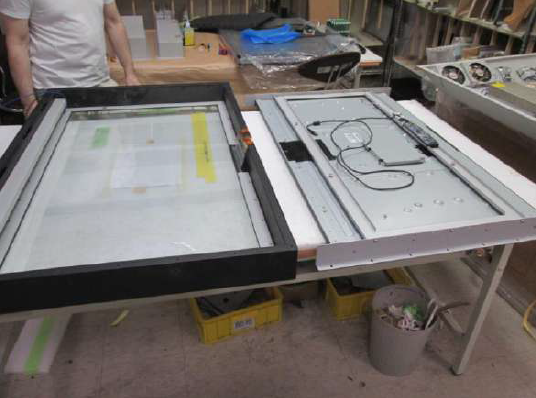

Removed the 4 sides brackets ( red marked ) and checked the water leakage problem.
