Part No. U4600P1 - Case 6-OW-109907-79223 - How to check AD board LVDS Cable
AD board LVDS Cable Check Procedure

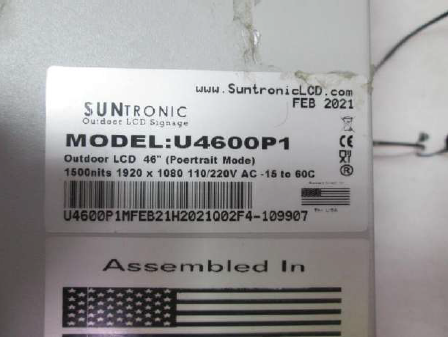

Step 1. Label check

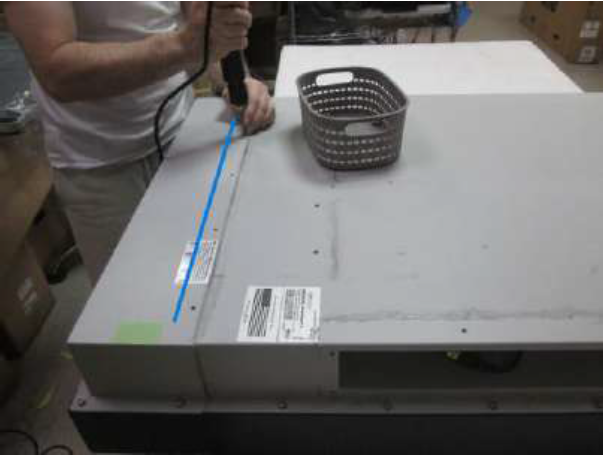

Step 2. Loosed rear enclosure around screws ( blue marked ).
Step 3. Removed sensor cable carefully ( red marked )

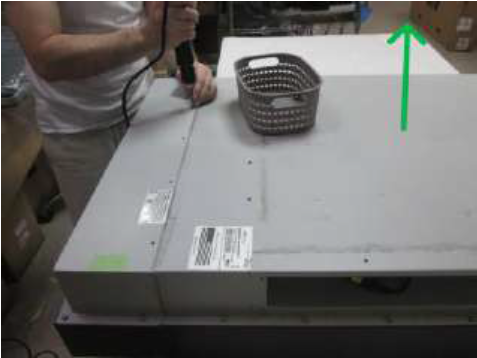

Step 4. Lifted open the rear enclosure slowly ( green marked ).
Step 5.

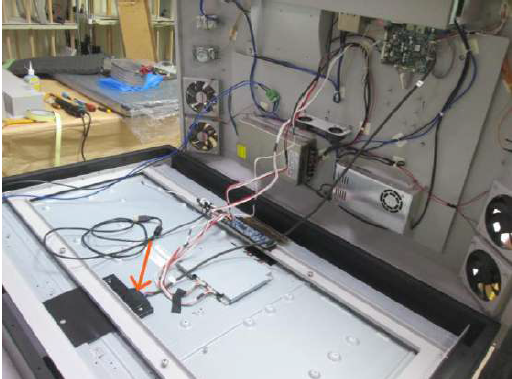

a. Removed the black tape ( orange marked )

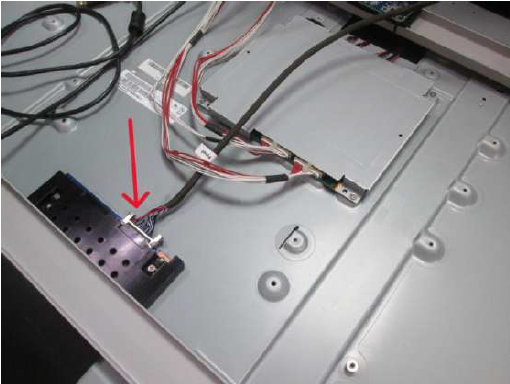

b. Checked LVDS connector ( red marked )
