Part No. NVP119S8e-KOR - Case 6-OW-111019-79233 - How to rework LVDS Cable?

Before your work, please make sure that the power is disconnected.

​

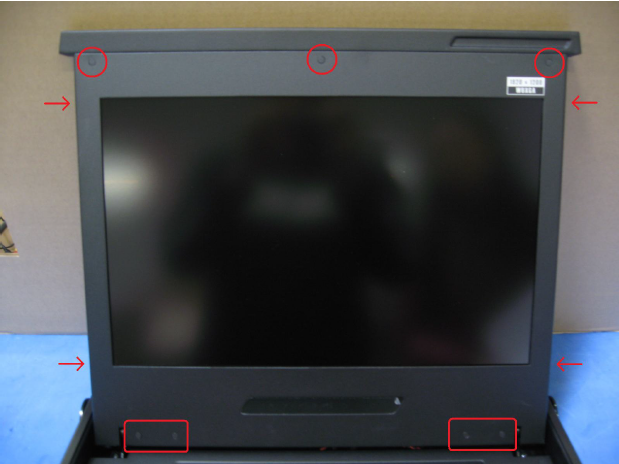

Step 1: Remove all the LCD panel screws. (11 screws)

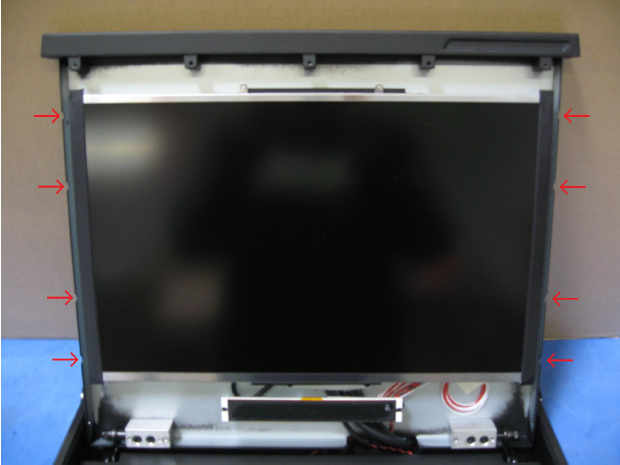

Step 2: Remove the LCD mounting screw carefully in case of damage LCD panel. (8 screws)

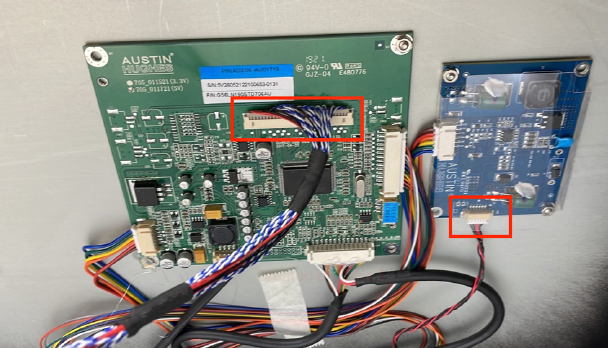

Step 3: Unplug the LVDS & inverter as shown in picture to release the LCD panel from the unit.

Step 4: Please reverse the panel and replace out the old/defective LVDS cable, and make sure to connect well for new LVDS cable.

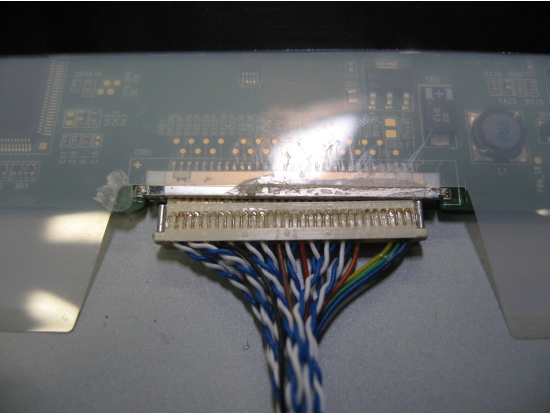

Connected well

Not connected well

Step 5: Please reverse above steps to reassembly the unit back.
