Part No. EPMW2155D-FHD-TR-AP01 - Case 6-OW-107744-79412 - DC - DC Power Board Replacement
1. The power board inside of monitor to be replaced.

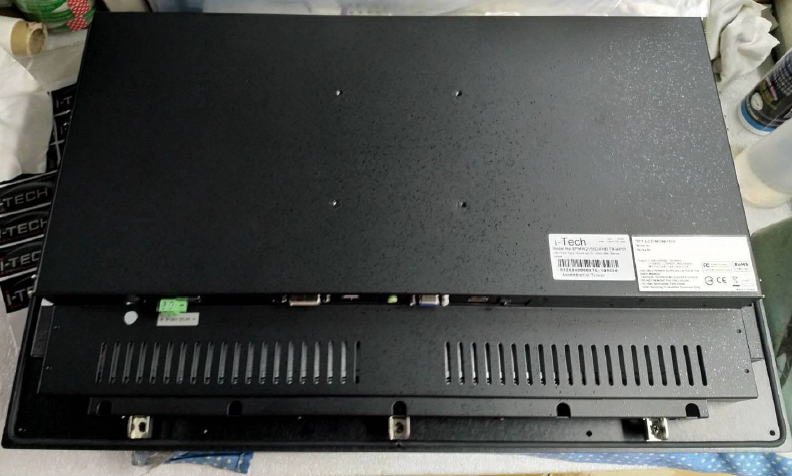

2. Remove clamp mount brackets on four sides.
3. Remove screws on both of left and right sides of back housing, to separate front bezel/touch/LCD panel sub module from back housing. Remove panel cable on panel side, remove back light cable on LED driver board side, and remove touch cable on touch controller side. So you’ll find the power board for replacement.
