Part No. AK201e-FR - Case 6-120995-79100 - Question: How to replace Keyboard Controller

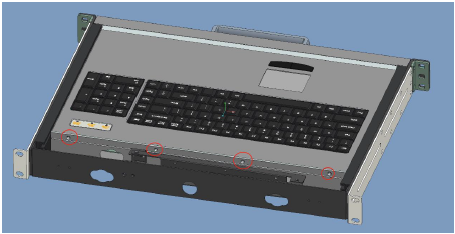

1. Remove screw x 4 from the bottom.
2. Remove screw x4.

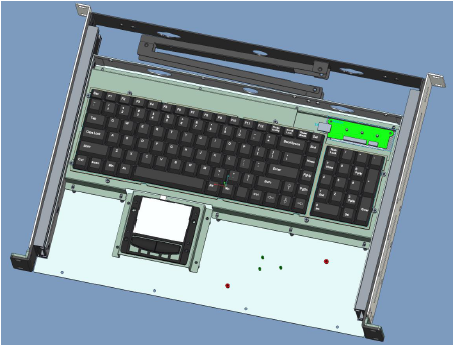

3. Remove up cover

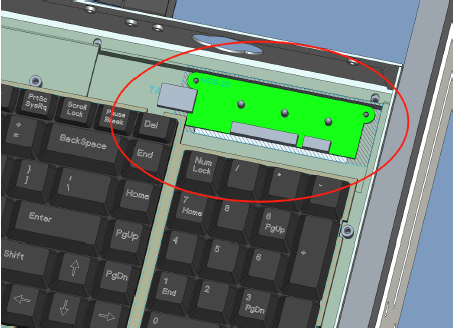

4. Replace keyboard controller
