Part No.: Amil-1900-D12e-AC - Case 6-OW-111033-80067 - How to Replace Front Panel Plate

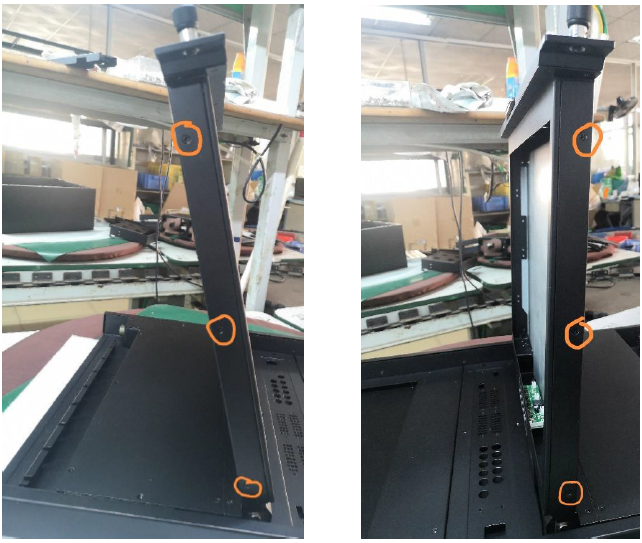

1. Remove screws x 3 at both sides

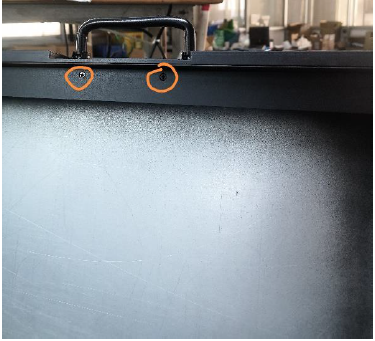

2. Remove screws x 2 at the top

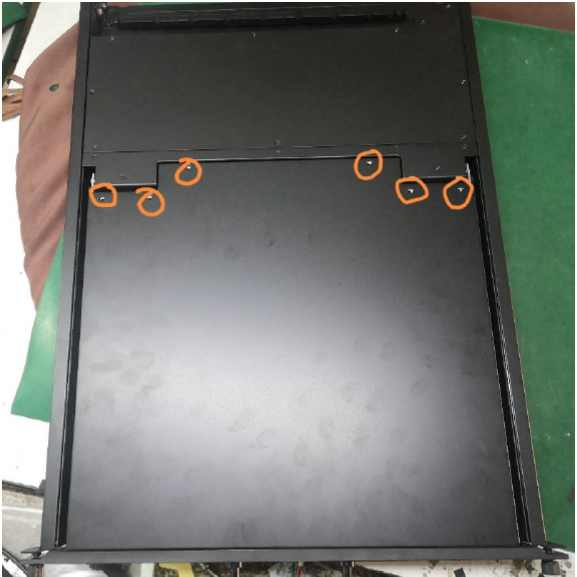

3. Remove screws x 6 to open the LCD back cover

4. Remove screws x 10 to remove handles and replace bended aluminum parts
