Panel Replacement Procedure

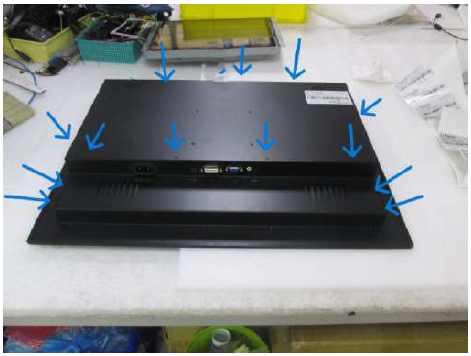

Step 1:
Loosed the rear housing screws. ( blue marked ).

Step 2:
a. Lifted up rear housing lightly
b. Removed power connector ( yellow marked )
c. Removed OSD cable ( green marked )
d. Removed speakers connector ( orange marked )

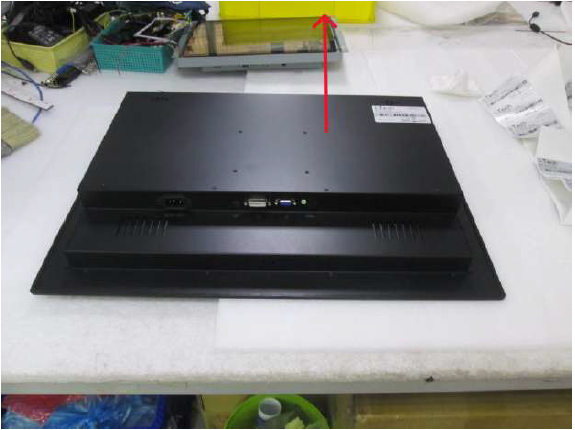

Step 3:
Removed the rear housing ( red marked )

Step 4:
a. Loosed I/O housing screws. ( shorter black screws / green marked )
b. Removed I/O housing. ( red marked )

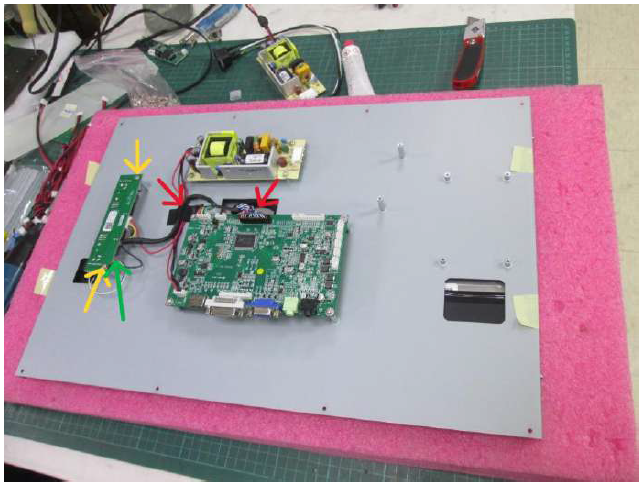

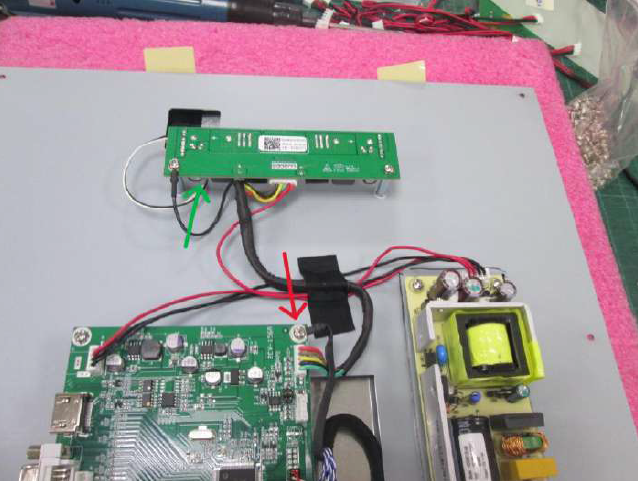

Step 5:
a. Loosed driving board screws. ( 2 pcs / yellow marked )
b. Removed inverter cable carefully. ( green marked )
c. Remove LVDS cable and “ GND cable “. ( red marked )

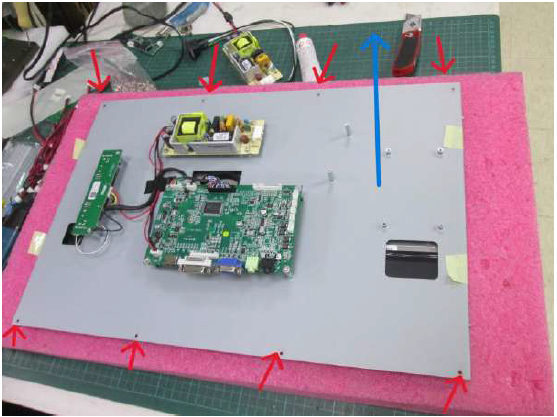

Step 7:
a. Loosed plate screws ( 8pcs / red marked )
b. Took the plate. ( blue marked )

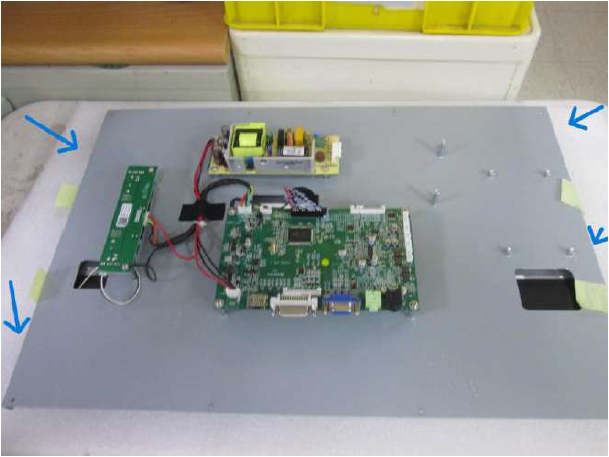

Step 8:
a. Loosed the plate side screws ( 4 pcs / blue marked ) 4 pcs screws are used to fix panel
b. New panel replaced

Note:
Tools: Screw Driver, Tweezers
a. There are two length size for black screws.
Shorter is used to the rear housing and I/O housing lock the front bezel.
We also will send two different size black screws to you for spare.

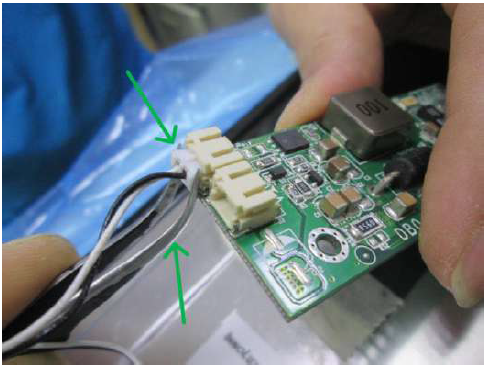

b. Tweezers is used to remove inverter cable easily. ( Step 5 / green marked )

Please see the below picture.
