Part No.: NVP117b - 6-OW-107968-78373 - Questions: How to Replace LCD Panel?

(1) Before your work, please make sure that the power is disconnected.

Step 1: Remove all the LCD panel screws. (11 screws)

Step 2: Remove the LCD mounting screw carefully in case of damage LCD panel. (8 screws)

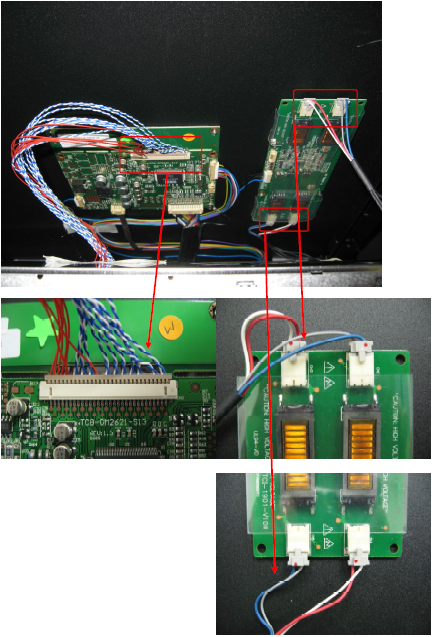

Step 3: Unplug the cable connected to the LCD panel carefully in case of damage the cables (either 2 or 4 connectors on inverter)
