Part No.: YRM2130-M2 - Case 6-121089-79980 - Panel Replacement Procedure

21.3” Panel Replacement Procedure

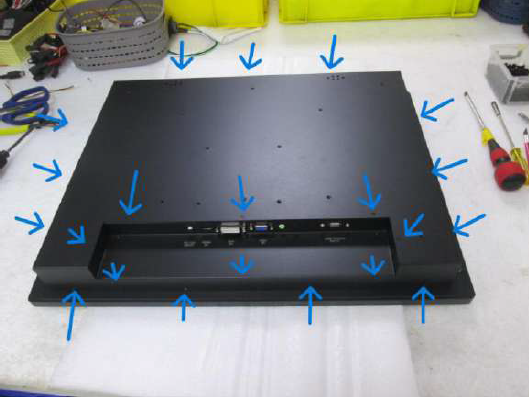

Step 1: Loosed rear enclosure’s screws (blue marked).

Step 2:
a. Removed the rear enclosure

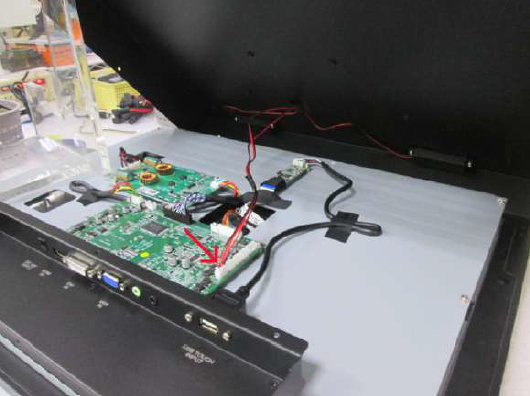

b. Removed speaker socket ( red marked )

Step 3:

a. Removed USB cable ( red marked )

b. Loosed DVI screw ( orange marked )

c. Loosed I/O cover screws ( blue marked )

d. Removed I/O cover ( yellow marked )

Step 4:

a. Touch control card’s cable and tape ( red marked )

b. Removed OSD cable ( green marked )

c. Removed LVDS cable and GND cable ( orange marked )

d. Removed inverter socket ( blue marked )

Step 5:

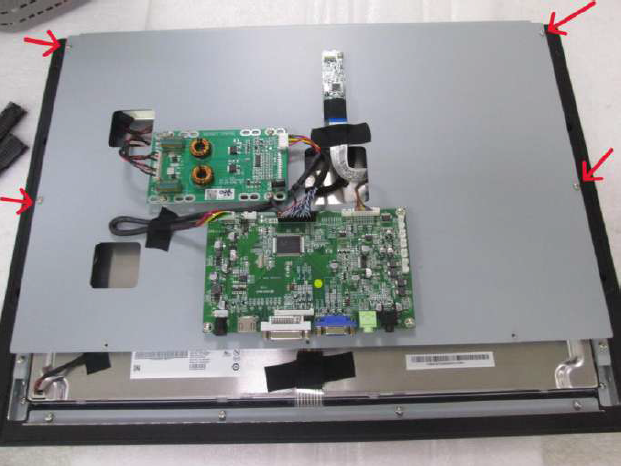

Loosed back cover screws ( red marked )

Step 6:

a. Removed 21.3” panel inverter cable ( green marked )

b. Removed back cover ( red marked )

Step 7:

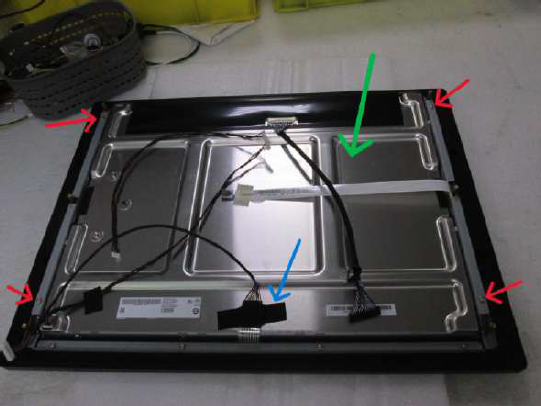

a. Removed OSD tape ( blue marked )

b. Loosed Left / Right bracket screws ( red marked )

c. Removed 21.3” panel carefully

Step 8:

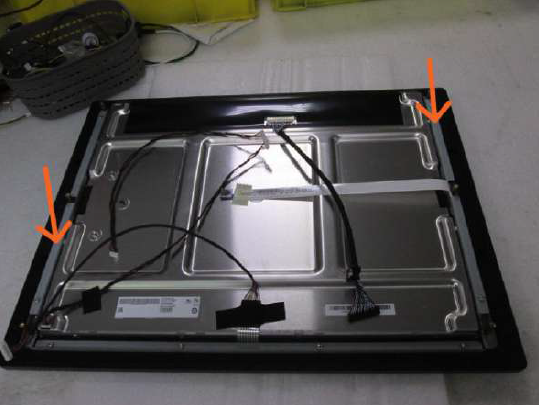

a. Loosed the original panel Left / Right bracket screw

b. Locked the Left / Right brackets to the new panel
